TNZ8UNQ202,03034PQF,Huawei Optix OSN 1800 Universal Line Board

Huawei Optix OSN 1800 Universal Line Board TNZ8UNQ202 03034PQF Overview

TNZ8UNQ2: 4 x 10G universal line service processing Board

The UNQ2 board is a universal line board and supports hybrid transmission of OTN, SDH, and packet services with the total bandwidth not exceed 40 Gbit/s (the total bandwidth of SDH services does not exceed 20 Gbit/s). It can also receive and transmit one or two of the preceding three service types. The UNQ2 board processes and converts the received service signals into four OTU2/OTU2e signals, which are carried over four ITU-T G.694.1-compliant DWDM wavelengths.

The UNQ2 board consists of switching interface module, signal processing module, WDM-side optical module, control and communication module, and power supply module.

Functions and features of the TNZ8UNQ202 board

Function and Feature

Description

Basic function

Provides four line ports to convert a maximum of 32 channels of ODU0, 16 channels of ODU1, 4 channels of ODU2(e), 32 channels of ODUflex signals to 4 channel of OTU2(e).

For details about the service mapping path, see Application.

Hunan Moka Information Technology Co., Ltd.

A professional import and export trade company specializing in the agency sales and services of the full range of Huawei telecom equipment,Huawei parts,Cisco products in the United States. Our product range includes Cisco switches, Cisco routers, Cisco firewalls, Cisco wireless APs, Cisco conference terminals, Cisco optical modules, Cisco fiber optic jumpers, Cisco industrial switches, and Cisco software licenses. As an authorized distributor of Cisco in China, we directly purchase hardware and software from Cisco China in the name of projects. As a result, you can obtain the best discounts from Cisco China, typically ranging from 60% to over 90%. Due to Cisco's global sales policy, if you order Cisco licenses, with your consent and permission, we will assist you in installing and activating Cisco licenses within China. Alternatively, you can activate them in your own country, and we will transfer the licenses to you. All you need is a Cisco Smart Account. When the Cisco licenses expire, you can choose to renew them yourself or contact us.

As an authorized distributor of Cisco in China, we directly purchase hardware and software from Cisco China in the name of projects.

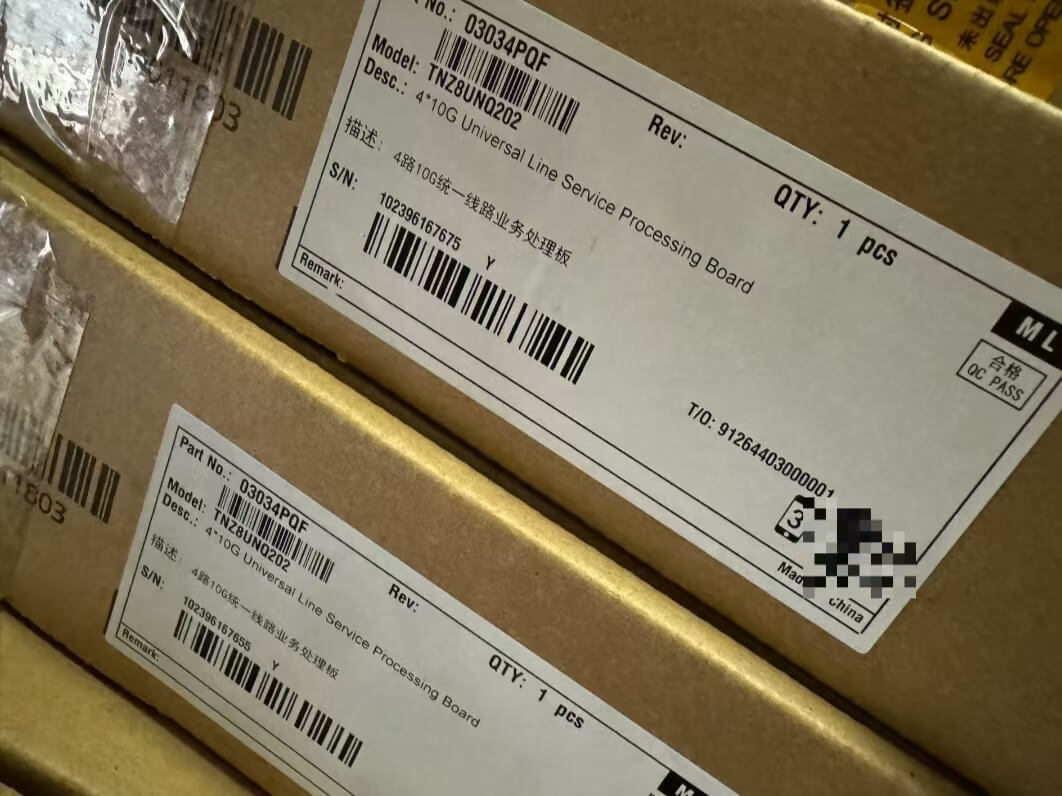

Huawei Optix OSN 1800 Universal Line Board TNZ8UNQ202 03034PQF
