TNV6S216,Huawei OptiX OSN 9800 SDH Board

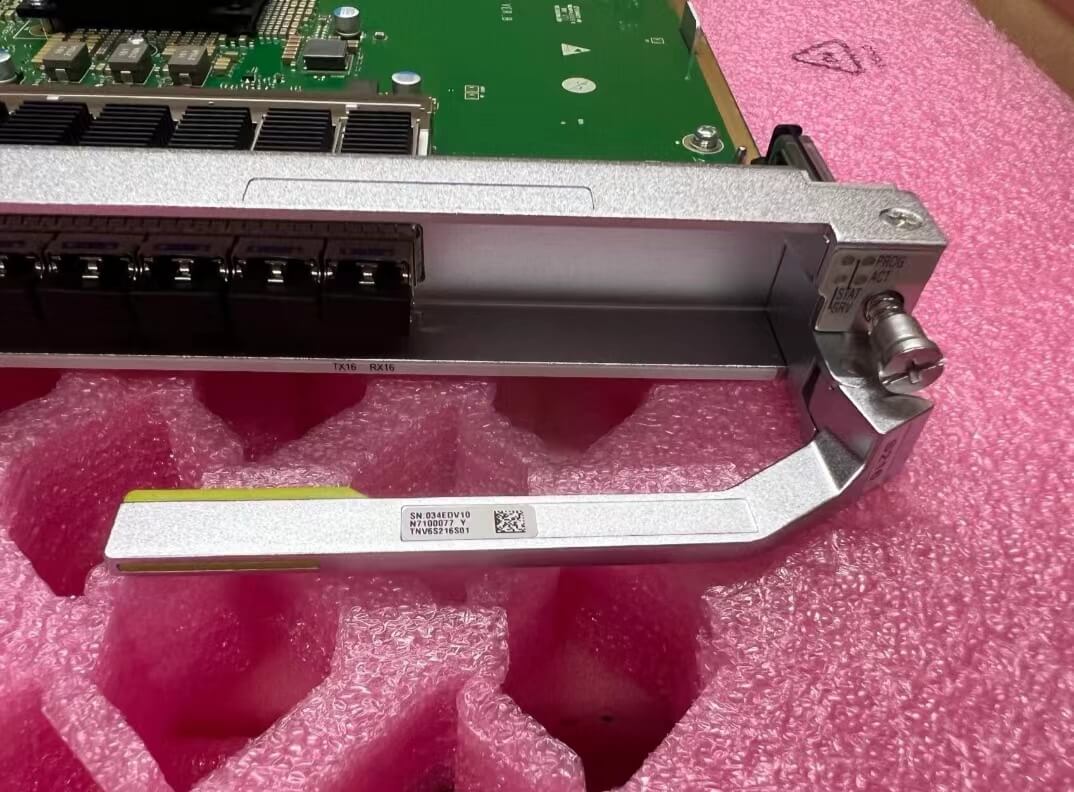

Huawei OptiX OSN 9800 SDH Board TNV6S216 Overview

TNV6S216: 16 x STM-N(N=1, 4, 16, 64) optical interface board

The TNV6S216 board is a SDH board, which can be used to transmit and receive STM-n (n=1, 4, 16, or 64) optical signals.

The TNV6S216 board converts the received STM-n optical signals into VC4, VC-4-Xc (X=4/16/64) signals and sends VC4, VC-4-Xc (X=4/16/64) signals to the cross-connect side.

The TNV6S216 board supports OTU1 services.

Functions and features of the TNV6S216 board

Function and Feature

Description

Basic function

Receives/Transmits 16 x STM-1/STM-4/STM-16 optical signals.

Receives/Transmits 4 x STM-64 optical signals.

Supports OTU1 service.

NOTE:

When the board receives STM-16/STM-64 services, every four ports on the board are divided into a group for transmitting services. The groups are as follows: TX1/RX1-TX4/RX4, TX5/RX5-TX8/RX8, TX9/RX9-TX12/RX12 and TX13/RX13-TX16/RX16:
1. The SDH capacity supported by each group of ports is 10 Gbit/s.
2. STM-64 services can be transmitted only through TX1/RX1, TX5/RX5, TX9/RX9, and TX13/RX13.
There is no group restriction on the STM-1/STM-4 service access. The maximum SDH service access capacity of the board must not exceed 40 Gbit/s.
