TNU3UXCS,Huawei OptiX OSN 9800 Universal Cross Connect Board

Huawei OptiX OSN 9800 Universal Cross Connect Board TNU3UXCS Overview

TNU3UXCS: Universal Cross Connect Board

TNU3UXCS board is a cross-connect board.

The TNU3UXCS board grooms and protects ODUk (k = 0, 1, 2, 2e, 3, 4, or flex), Packet, VC-4 and OSUflex signals within a subrack.

The TNU3UXCS board consists of an cross-connect module, control and communication module, and power supply module.

Functions and Features of the TNU3UXCS Board

Function and Feature	Description
Basic function	TNU3UXCS board is a cross-connect board. The TNU3UXCS board grooms and protects ODUk (k = 0, 1, 2, 2e, 3, 4, or flex), Packet, VC-4 and OSUflex signals within a subrack.
Cross-connect Capacity	U64 Enhanced Cross-connects a maximum of 25.6 Tbit/s ODUk (k = 0, 1, 2, 2e, 3, 4 or flex) signals, and each service slot provides a cross-connect capacity of 400 Gbit/s. Performs packet switching of a maximum of 25.6 Tbit/s Ethernet services, and each service slot provides a cross-connect capacity of 400 Gbit/s. Cross-connects a maximum of 10.24 Tbit/s VC-4 signals, and each service slot provides a cross-connect capacity of 160 Gbit/s. Cross-connects a maximum of 25.6 Tbit/s OSUflex signals, and each service slot provides a cross-connect capacity of 400 Gbit/s. U32 Enhanced Cross-connects a maximum of 12.8 Tbit/s ODUk (k = 0, 1, 2, 2e, 3, 4 or flex) signals, and each service slot provides a cross-connect capacity of 400 Gbit/s. Performs packet switching of a maximum of 12.8 Tbit/s Ethernet services, and each service slot provides a cross-connect capacity of 400 Gbit/s. Cross-connects a maximum of 5.12 Tbit/s VC-4 signals, and each service slot provides a cross-connect capacity of 160 Gbit/s. Cross-connects a maximum of 12.8 Tbit/s OSUflex signals, and each service slot provides a cross-connect capacity of 400 Gbit/s.
OTN cluster	Not Supported
Electrical-layer ASON	Supported
SDH ASON	Supported
Backup mode	U64 Enhanced: The fourteen cross-connect boards form a cross-connect resource pool for service grooming. U32 Enhanced: The seven cross-connect boards form a cross-connect resource pool for service grooming. When two TNU3UXCS boards are faulty, the system can still function properly. If more than two TNU3UXCS boards become faulty, the system will fail.

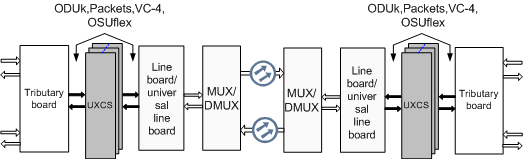

Position of the TNU3UXCS board in a WDM system
