TNU1UCXCS,03024GWH,Huawei OptiX OSN 9800 Cross-Connect Board

Huawei OptiX OSN 9800 Cross-Connect Board TNU1UCXCS 03024GWH Overview

TNU1UCXCS: Universal Cluster Cross Connect Board

The TNU1UCXCS board variant is TNU1UCXCS.

The TNU1UCXCS board grooms and protects ODUk (k=0, 1, 2, 2e, 3, 4, or flex) signals within a subrack and between subracks in a cluster system.

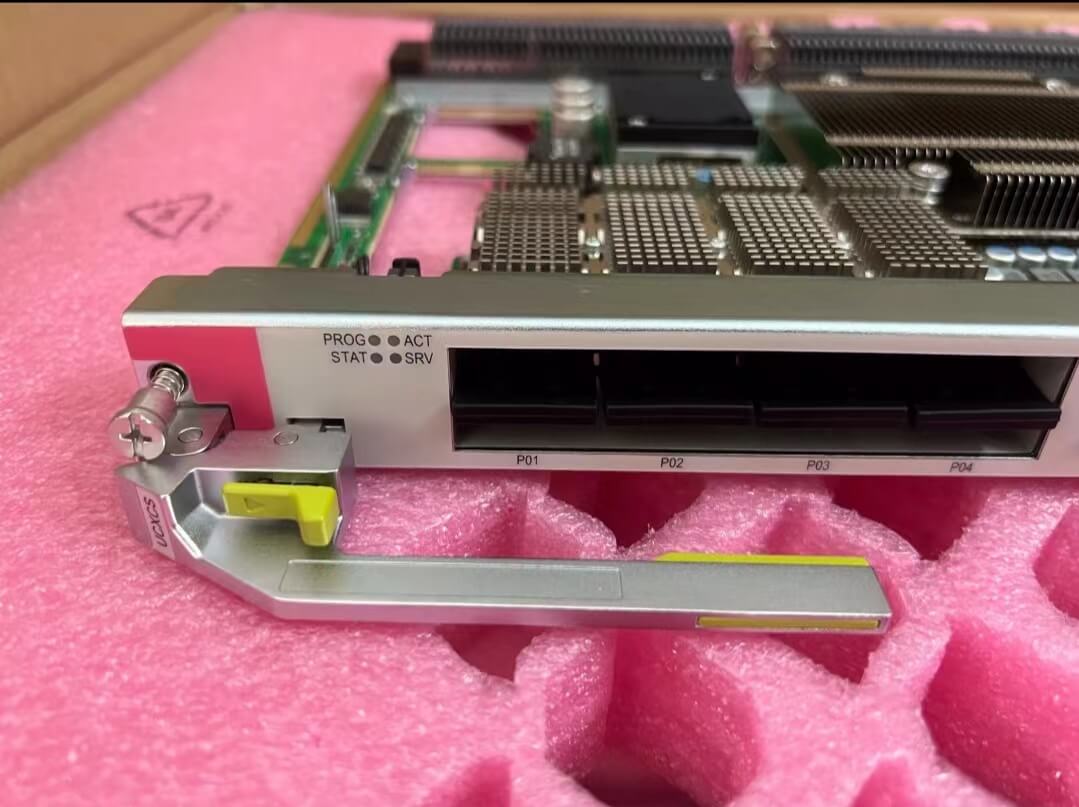

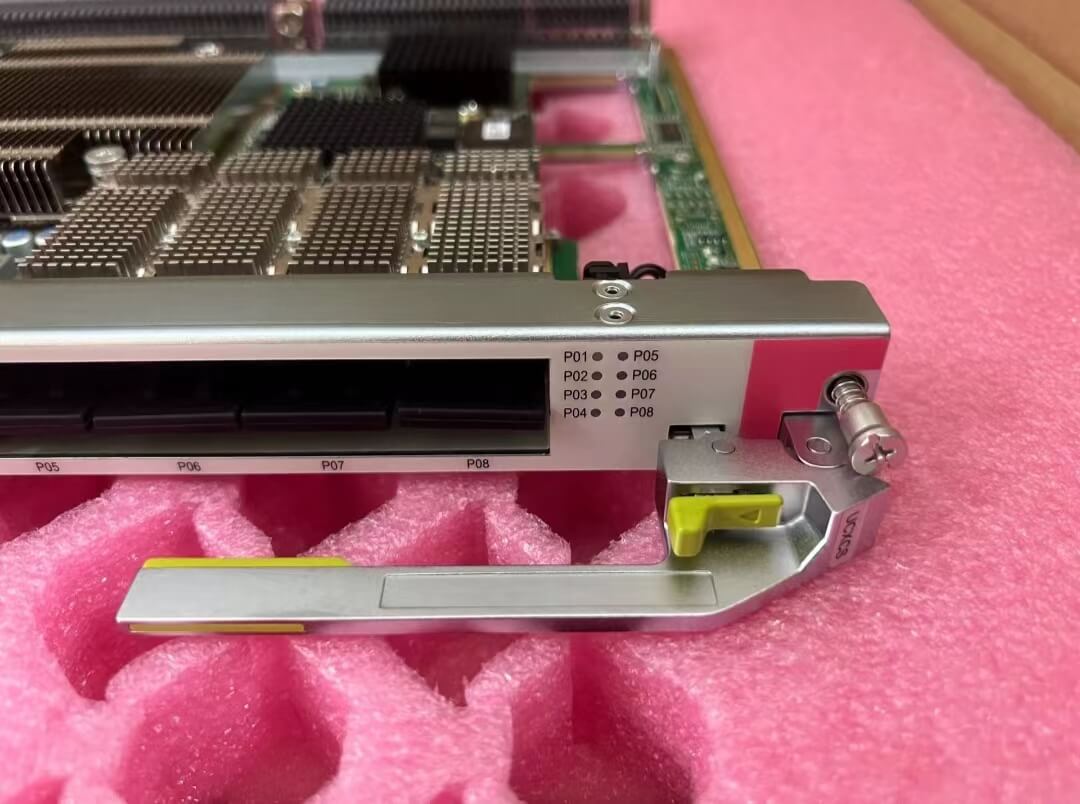

The UCXCS board provides external ports and supports a maximum of eight pluggable CXP2 optical modules for the interconnection between subracks. Optical modules and optical fibers are fixed together and cannot be separated.

UCXCS board is a cross-connect board. The UCXCS board grooms and protects ODUk (k = 0, 1, 2, 2e, 3, 4, or flex), Packet, VC-4 and OSUflex signals within a subrack.

When two U32 Enhanced subracks or two U64 Enhanced subracks are configured in a B2B mode, one subrack can be configured with TNU3UCXCS boards and the other subrack can be configured with TNU1UCXCS boards.

Functions and features of the TNU1UCXCS board

Function and Feature	Description
Basic function	Grooms and protects ODUk (k = 0, 1, 2, 2e, 3, 4, or flex), Packet, VC-4 and OSUflex signals within a subrack and ODUk (k = 0, 1, 2, 2e, 3, 4, or flex) signals between subracks in a cluster system.
Cross-connect Capacity	U64 Standard subrack Cross-connects a maximum of 25.6 Tbit/s ODUk (k = 0, 1, 2, 2e, 3, 4 or flex) signals, and each service slot provides a cross-connect capacity of 400 Gbit/s. Performs packet switching of a maximum of 25.6 Tbit/s Ethernet services, and each service slot provides a cross-connect capacity of 400 Gbit/s. Cross-connects a maximum of 10.24 Tbit/s VC-4 signals, and each service slot provides a cross-connect capacity of 160 Gbit/s. Cross-connects a maximum of 25.6 Tbit/s OSUflex signals, and each service slot provides a cross-connect capacity of 400 Gbit/s. U64 Enhanced subrack Cross-connects a maximum of 64 Tbit/s ODUk (k = 0, 1, 2, 2e, 3, 4 or flex) signals, and each service slot provides a cross-connect capacity of 1 Tbit/s. Performs packet switching of a maximum of 25.6 Tbit/s Ethernet services, and each service slot provides a cross-connect capacity of 400 Gbit/s. Cross-connects a maximum of 10.24 Tbit/s VC-4 signals, and each service slot provides a cross-connect capacity of 160 Gbit/s. Cross-connects a maximum of 64 Tbit/s OSUflex signals, and each service slot provides a cross-connect capacity of 1 Tbit/s. U32 Standard subrack Cross-connects a maximum of 12.8 Tbit/s ODUk (k = 0, 1, 2, 2e, 3, 4 or flex) signals, and each service slot provides a cross-connect capacity of 400 Gbit/s. Performs packet switching of a maximum of 12.8 Tbit/s Ethernet services, and each service slot provides a cross-connect capacity of 400 Gbit/s. Cross-connects a maximum of 5.12 Tbit/s VC-4 signals, and each service slot provides a cross-connect capacity of 160 Gbit/s. Cross-connects a maximum of 12.8 Tbit/s OSUflex signals, and each service slot provides a cross-connect capacity of 400 Gbit/s. U32 Enhanced subrack Cross-connects a maximum of 32 Tbit/s ODUk (k = 0, 1, 2, 2e, 3, 4 or flex) signals, and each service slot provides a cross-connect capacity of 1 Tbit/s. Performs packet switching of a maximum of 12.8 Tbit/s Ethernet services, and each service slot provides a cross-connect capacity of 400 Gbit/s. Cross-connects a maximum of 5.12 Tbit/s VC-4 signals, and each service slot provides a cross-connect capacity of 160 Gbit/s. Cross-connects a maximum of 32 Tbit/s OSUflex signals, and each service slot provides a cross-connect capacity of 1 Tbit/s.
OTN cluster	Supported
Electrical-layer ASON	Supported
SDH ASON	Supported
Backup mode	The 14 cross-connect boards of the U64 subrack or the seven cross-connect boards of the U32 subrack form a cross-connect resource pool for service grooming. When two UCXCS boards are faulty, the system can still function properly. If more than two UCXCS boards become faulty, the system will fail.
