TNN1ETMC Is Huawei OptiX OSN7500 Packet Interface Boards
Huawei OptiX OSN7500 Packet Interface Boards TNN1ETMC 03020XRC Overview

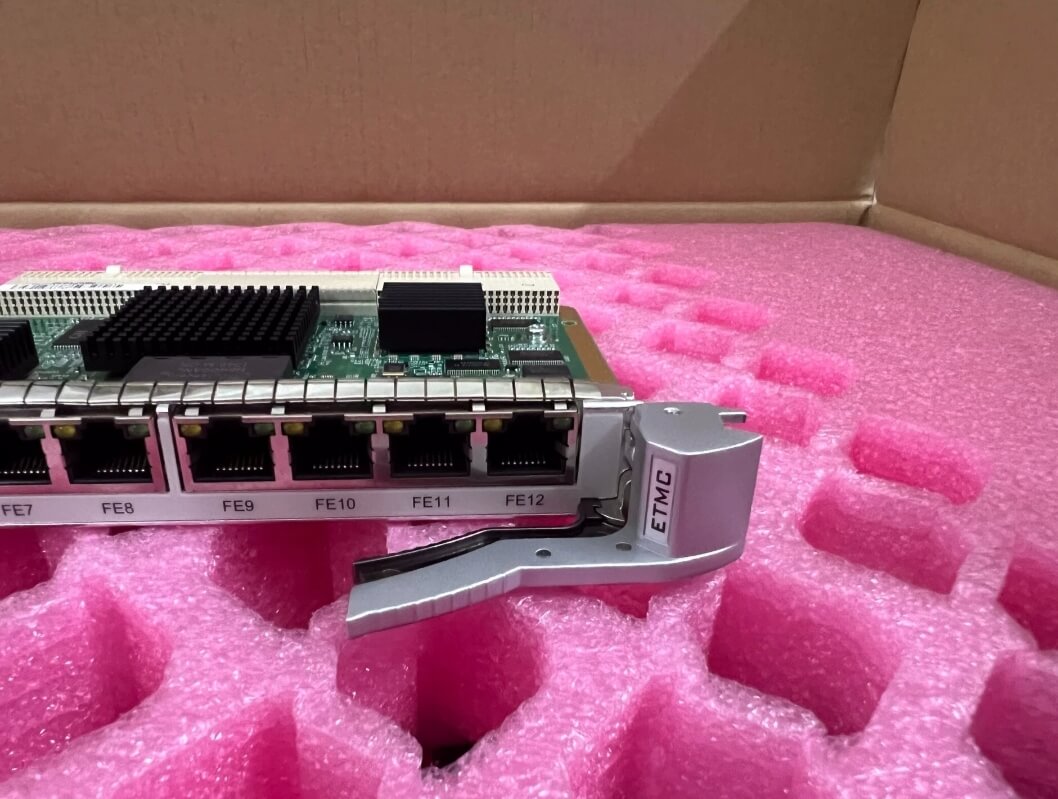

TNN1ETMC (8xFE+4xFE/GE electrical interface board).
The ETMC is available in one functional version, namely, TNN1.
As a packet interface board, the ETMC works with the EG8 to process four GE services or 12 FE services.
ETMC boards provide four FE/GE auto-sensing electrical ports and eight FE electrical ports to receive Ethernet services, and work with the EG8 to process the received Ethernet services.
The ETMC consists of the interface converting module, service processing module, management module, clock module, and power module.
Functions and features of the TNN1ETMC board
Function and Feature |
Description |
Basic functions |
Provides eight FE fixed electrical ports and four GE/FE adaptive electrical ports to transmit/receive electrical signals. NOTE: If both FE and GE electrical ports are used, the total bandwidth cannot exceed 2GE. The boards in slots 1, 3, 5, 7, 9, and 11 share 1 Gbit/s bandwidth, and the boards in slots 2, 4, 6, 8, 10, and 12 share 1Gbit/s bandwidth. |
Port types |
Supports 1000BASE-T and 100BASE-TX Ethernet electrical ports, which use RJ45 connectors and comply with IEEE 802.3u. |
