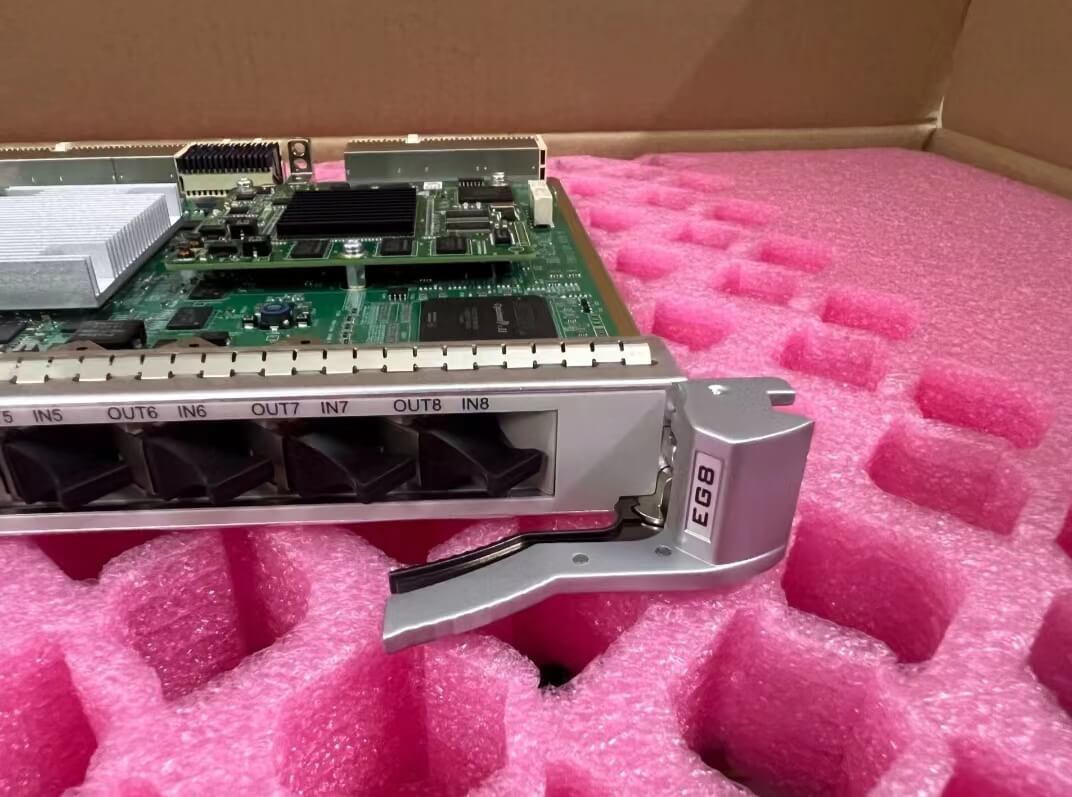

Huawei Optix OSN 7500 Packet Processing Boards TNN1EG8 03020XMX
Huawei Optix OSN 7500 Packet Processing Boards TNN1EG8 03020XMX
Huawei Optix OSN 7500 Packet Processing Boards TNN1EG8 03020XMX
Huawei Optix OSN 7500 Packet Processing Boards TNN1EG8 03020XMX
< >

Huawei Optix OSN 7500 Packet Processing Boards TNN1EG8 03020XMX

TNN1EG8 Is Huawei Optix OSN 7500 Packet Processing Boards

DETAILS

  • Brand Name : Huawei
  • Place of Origin : China
  • Certification : FCC
  • Condition : New Factory Sealed
  • Minimum Order Quantity : 1/Unit
  • Delivery Time : 7 days
  • Model Number : TNN1EG8
  • Description : 8xGE processing board


Huawei Optix OSN 7500 Packet Processing Boards TNN1EG8 03020XMX Overview



TNN1EG8:8xGE processing board



The EG8 is available in one functional version, namely, TNN1.



The EG8 is mainly used in the packet data transmission field to receive data packets, manage bandwidths, and implement switching of data packets.



EG8 boards process 8xGE services, forward 8 Gbit/s data, and support QoS functions such as traffic management, congestion control, and scheduling.



The EG8 consists of the service processing module, transmission management module, switching buffering module, management module, clock module, and power module.

Functions and features of the TNN1EG8 board



unction and Feature

Description

Basic functions

Provides eight GE ports to transmit/receive and process 8xGE services.

Port types

  1. Supports 1000BASE-SX, 1000BASE-LX, 1000BASE-VX, and 1000BASE-ZX optical ports, which use LC connectors. Supports the transmission distances of 0.5 km, 10 km, 40 km, and 80 km.
  2. Supports CWDM and DWDM colored optical ports, which use LC connectors. CWDM optical ports support the transmission distances of 40 km and 80 km. DWDM optical ports support the transmission distance of 120 km.
  3. Supports GE electrical ports which use RJ45 connectors and meet the specifications of the 1000BASE-TX Physical Layer specified in IEEE 802.3.

Functions when being used with an interface board

Works with an interface board ETMC/EFF8/AFO1/CO1/D75E/D12E. One EG8 board can transmit/receive the service of a maximum of two interface boards.
