TNM1EG4C,03021PKC,Huawei OptiX OSN 550 Packet Service Processing Board

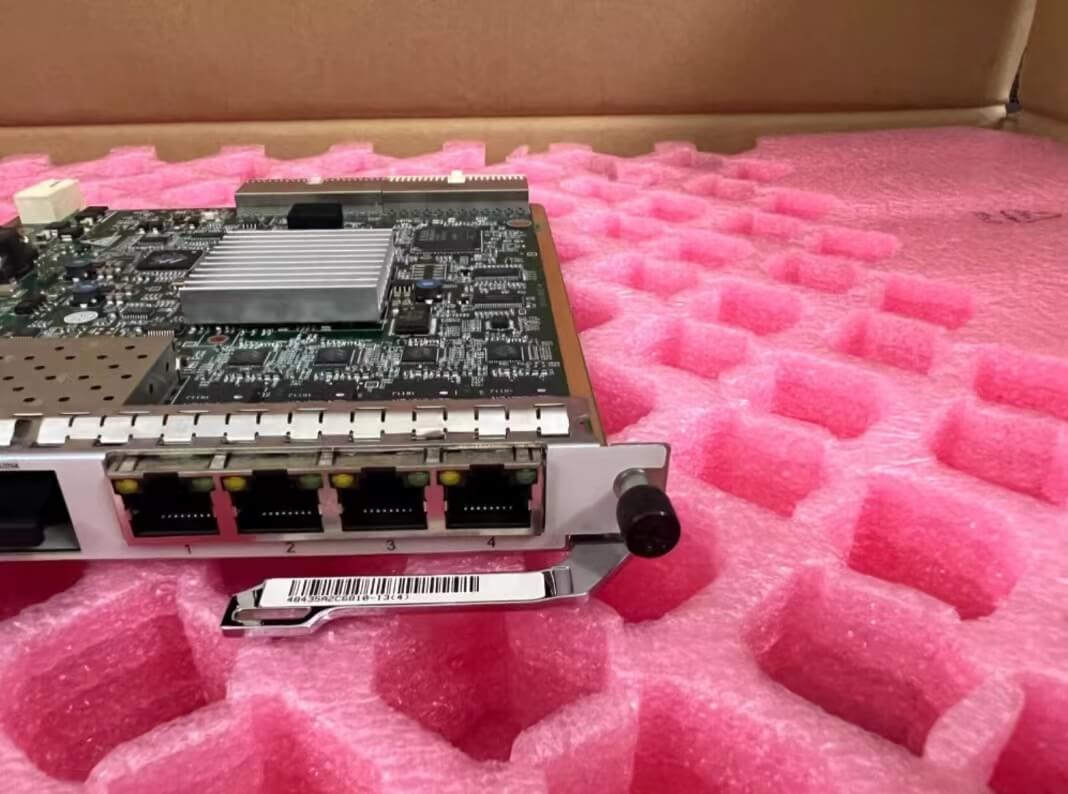

Huawei OptiX OSN 550 Packet Service Processing Board TNM1EG4C Overview

The EG4C is a 4xGE processing board.

The functional version of the EG4C is TNM1.

The EG4C receives/transmits and processes 4xFE/GE signals.

TNM1EG4C board does not have any DIP switches or jumpers.

Functions and features of the TNM1EG4C board

Function and Feature	Board
Basic functions	Receives/Transmits FE/GE service signals, and process these signals by working with the packet switching unit.
Backplane bus bandwidth	5 Gbit/s
Port specifications	Provides optical/electrical ports for 4xFE/GE signals. On the front panel of an EG4C board, the first four ports are optical ports using small form-factor pluggable (SFP) optical modules, and the last four ports are fixed electrical ports. The ports with the same ID cannot be used simultaneously. The following types of fixed GE electrical ports are supported: 1000BASE-T The following types of FE SFP optical modules are supported: 100BASE-BX/100BASE-FX/100BASE-LX/100BASE-VX/100BASE-ZX The following types of GE SFP optical modules are supported: 1000BASE-SX/1000BASE-LX/1000BASE-VX/1000BASE-ZX The following types of SFP modules are supported: FE/GE two-fiber bidirectional pluggable optical module FE/GE single-fiber bidirectional pluggable optical module A GE optical port can be a colored CWDM optical port. A colored CWDM optical port supports a transmission distance of 40 km or 80 km.

Hunan Moka Information Technology Co., Ltd.

A professional import and export trade company specializing in the agency sales and services of the full range of Huawei telecom equipment,Huawei parts,Cisco products in the United States. Our product range includes Cisco switches, Cisco routers, Cisco firewalls, Cisco wireless APs, Cisco conference terminals, Cisco optical modules, Cisco fiber optic jumpers, Cisco industrial switches, and Cisco software licenses. As an authorized distributor of Cisco in China, we directly purchase hardware and software from Cisco China in the name of projects. As a result, you can obtain the best discounts from Cisco China, typically ranging from 60% to over 90%. Due to Cisco's global sales policy, if you order Cisco licenses, with your consent and permission, we will assist you in installing and activating Cisco licenses within China. Alternatively, you can activate them in your own country, and we will transfer the licenses to you. All you need is a Cisco Smart Account. When the Cisco licenses expire, you can choose to renew them yourself or contact us.

As an authorized distributor of Cisco in China, we directly purchase hardware and software from Cisco China in the name of projects.

Huawei OptiX OSN 550 Packet Service Processing Board TNM1EG4C 03021PKC
