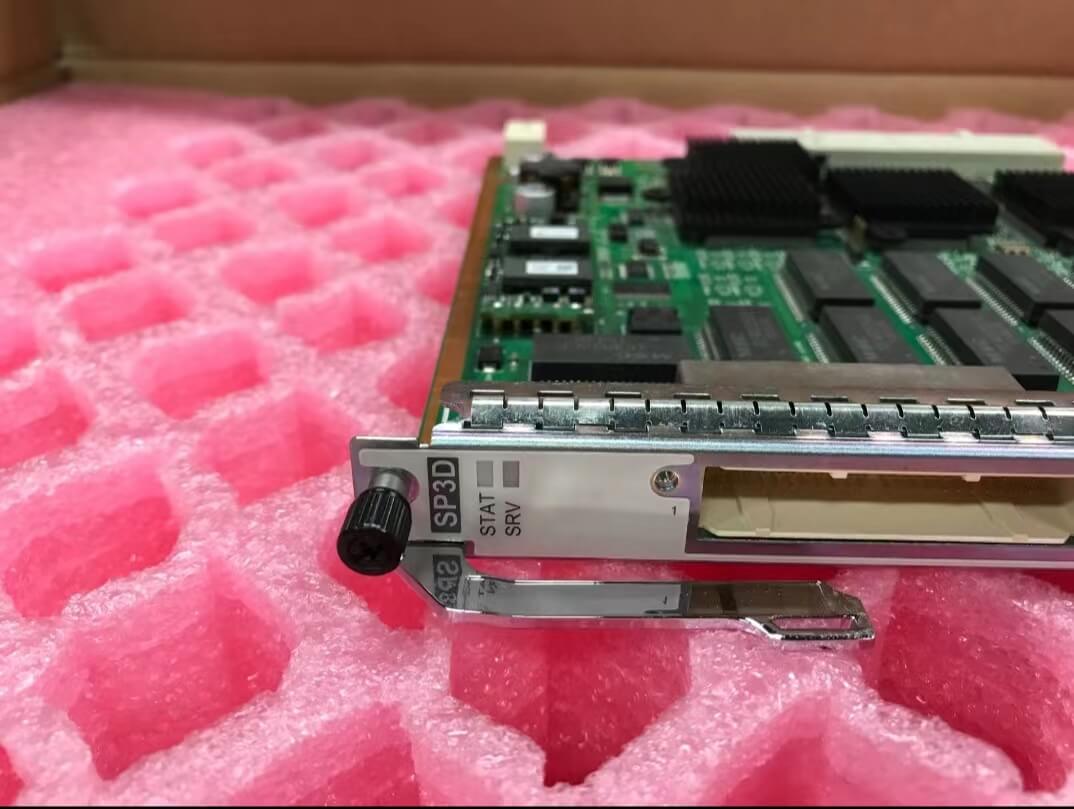

Huawei OSN 500 Series Board TNH1SP3D
Huawei OSN 500 Series Board TNH1SP3D
Huawei OSN 500 Series Board TNH1SP3D
Huawei OSN 500 Series Board TNH1SP3D
< >

Huawei OSN 500 Series Board TNH1SP3D

TNH1SP3D Is Huawei OSN 500 Series Board

DETAILS

  • Brand Name : Huawei
  • Place of Origin : China
  • Certification : FCC
  • Condition : New Factory Sealed
  • Minimum Order Quantity : 1/Unit
  • Delivery Time : 7 days
  • Model Number : TNH1SP3D
  • Description : 42xE1/T1 electrical interface board.


Huawei OSN 500 Series Board TNH1SP3D Overview



The SP3D board is a 42xE1/T1 electrical interface board.



The SP3D is available in two versions, that is, TNH1 and TNH2. The TNH1SP3D and TNH2SP3D have no difference and can substitute for each other. The TNH1SP3D is discontinued.



The TNH1SP3D board is used to process E1/T1 signals and overheads, to report alarms and performance events, and to provide maintenance functions.



The SP3D board consists of the interface module, encoding/decoding module, mapping/demapping module, logical control module, and power module



The front panel of the SP3D board has indicators and interfaces.



The SP3D board can be inserted in slots 3 to 4 in the chassis.



The feature code of a board refers to the number next to the board name in the bar code and indicates the type of board port. SP3D boards have feature codes.

Functions and Features



Function and Feature

Description

Service processing

Accesses and processes 42xE1/T1 signals.

Overhead processing

Processes POH bytes at the VC-12 level, such as J2 and V5 bytes.

Alarm and performance event

Provides rich alarms and performance events for easy management and maintenance of the equipment.

Maintenance functions

  1. Supports inloop and outloop at the electrical interfaces.
  2. Supports warm reset and cold reset. The warm reset does not affect services.
  3. Supports the query of the manufacturing information on a board.
  4. Supports the PRBS function.
