TNG3WSMD9,WSMD9,Huawei OptiX OSN 9800 Reconfigurable Optical Add/Drop Multiplexer WSMD9 Boards

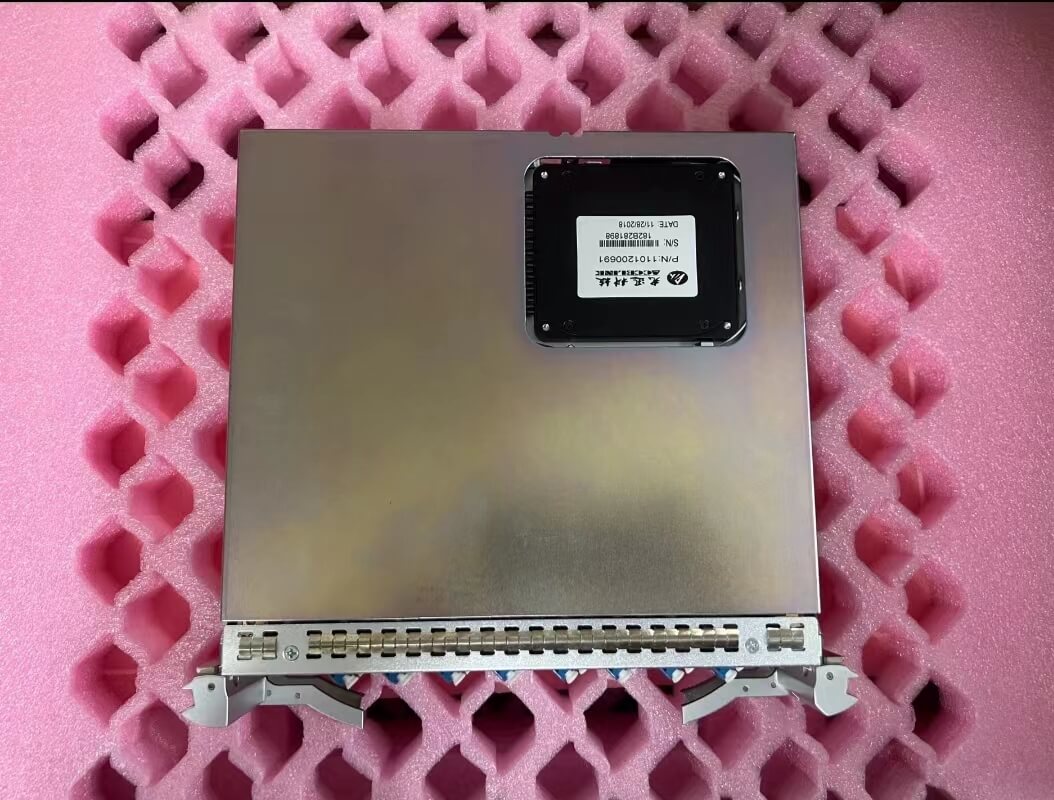

Huawei OptiX OSN 9800 Reconfigurable Optical Add/Drop Multiplexer Boards TNG3WSMD9 Overview

TNG3WSMD9: 9-port wavelength selective multiplexer and demultiplexer board (Extended C-band)

The TNG3WSMD9 board has only one variant: TNG3WSMD901.

The TNG3WSMD9 board can be used with the optical demultiplexer board, optical multiplexer board, or optical add/drop multiplexer board to implement wavelength grooming on DWDM nodes. TNG3WSMD9 supports extended C-band.

By default, only 4 AM/DM ports of a board can be used. To use the remaining 5 AM/DM ports, you must configure one "WSDM9 Dimensions RTU(Right for more than 4 dimensions)" RTU. The occupancy of a port indicates that optical cross-connections are configured on the port.

There are indicators, interfaces, and a laser hazard level label on the front panel of the WSMD9 board.

As a ROADM unit, the WSMD9 board is used with optical multiplexer boards, optical demultiplexer boards, or other OADM boards to perform wavelength grooming at DWDM network nodes.

Functions and Features of the TNG3WSMD9 Board

Function and Feature	Description
Basic function	Implements optical-layer service grooming for multiple wavelengths, and support contentionless. Wavelength adding: Adds any wavelengths from any directions through ports AM1 to AM9 and outputs the wavelengths through the OUT port. Wavelength dropping: Broadcasts the main optical channel signals received through the IN port to ports DM1 to DM9.
WDM specification	Supports the DWDM specifications.
Spectrum application	Supports extended C-band wavelengths. Supports flexible grid wavelength signals. The channel spacing is n x slice. (The minimum slice is 6.25 GHz. The value of n ranges from 6 to 64. That is, a single channel is adjustable within the range of 37.5 GHz to 400 GHz.)

Hunan Moka Information Technology Co., Ltd.

A professional import and export trade company specializing in the agency sales and services of the full range of Huawei telecom equipment,Huawei parts,Cisco products. Our product range includes Huawei Microwave,Huawe DWDM,Huawei SDH,Huawei OSN Series,Huawei parts, Cisco switches, Cisco routers, Cisco firewalls, Cisco wireless APs, Cisco conference terminals, Cisco optical modules, Cisco fiber optic jumpers, Cisco industrial switches, and Cisco software licenses. As an authorized distributor of Cisco in China, we directly purchase hardware and software from Cisco China in the name of projects. As a result, you can obtain the best discounts from Cisco China, typically ranging from 60% to over 90%. Due to Cisco's global sales policy, if you order Cisco licenses, with your consent and permission, we will assist you in installing and activating Cisco licenses within China. Alternatively, you can activate them in your own country, and we will transfer the licenses to you. All you need is a Cisco Smart Account. When the Cisco licenses expire, you can choose to renew them yourself or contact us.

As an authorized distributor of Cisco in China, we directly purchase hardware and software from Cisco China in the name of projects.

Huawei OptiX OSN 9800 Reconfigurable Optical Add/Drop Multiplexer WSMD9 Boards TNG3WSMD9

DETAILS

TNG3WSMD9: 9-port wavelength selective multiplexer and demultiplexer board (Extended C-band)
