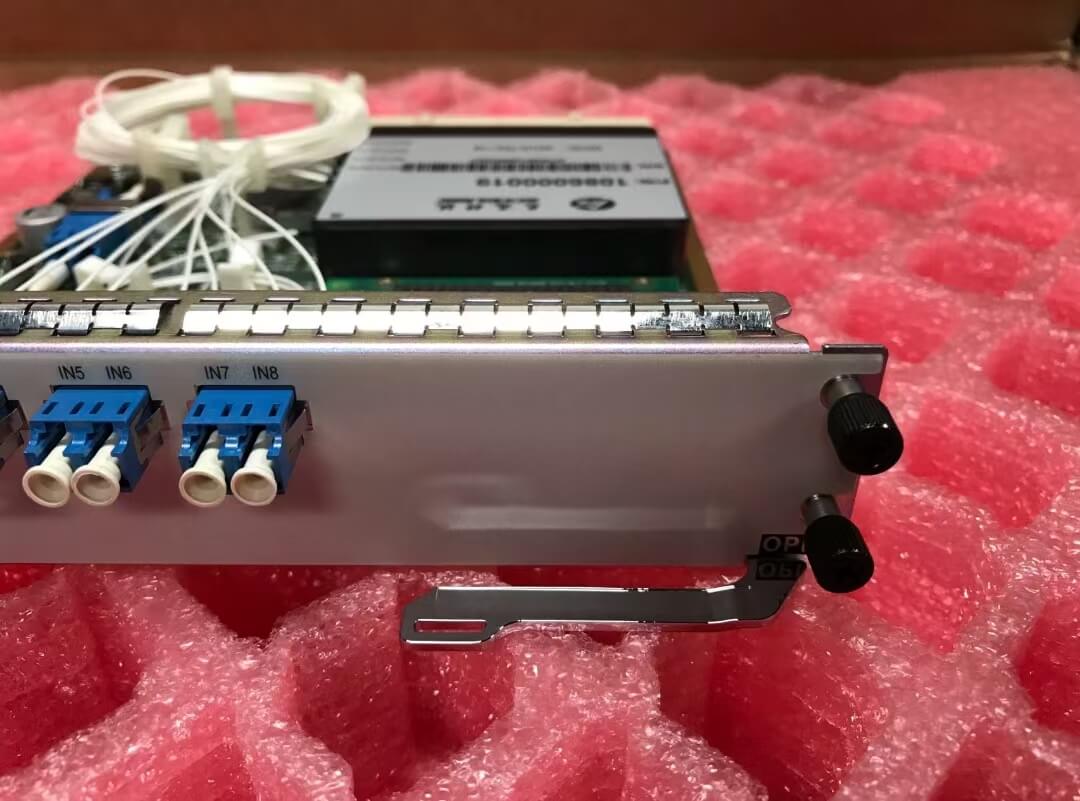

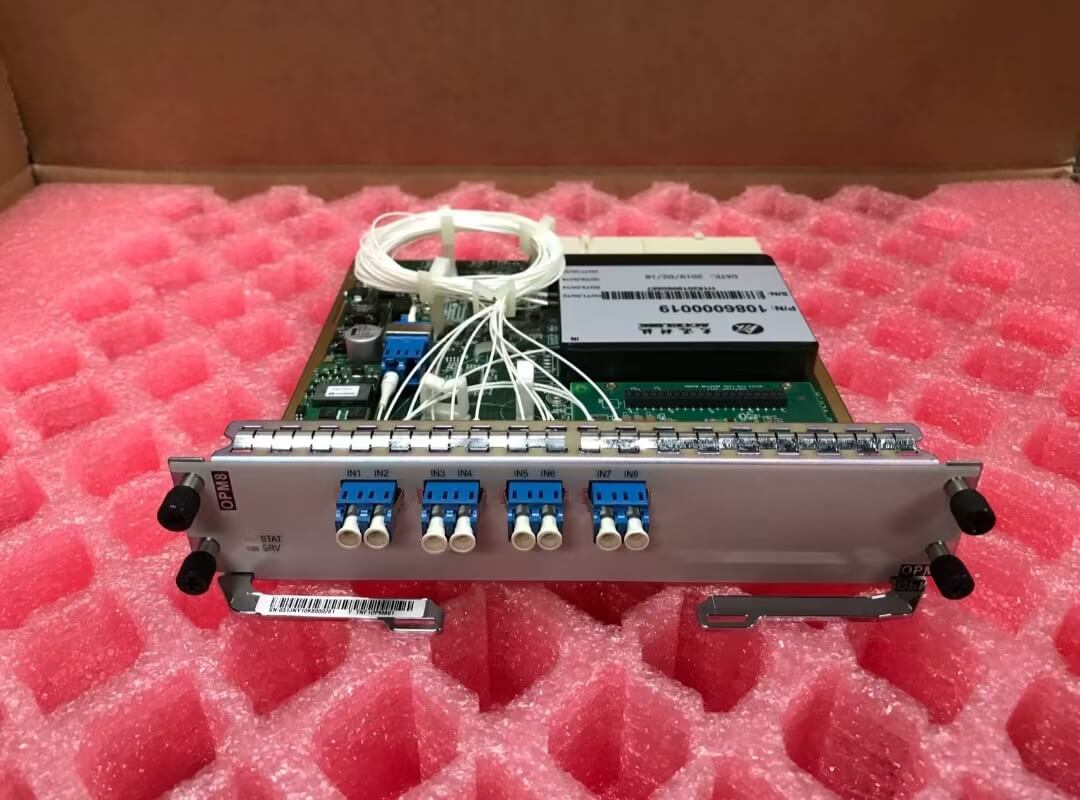

TNF1OPM8 Is Huawei Optix OSN 1800 Spectrum Analyzer Board
Huawei Optix OSN 1800 Spectrum Analyzer Board TNF1OPM8 Overview
TNF1OPM8: 8-channel optical power monitor board
The TNF1OPM8 board provides eight ports and each of the ports supports optical power monitoring of up to 80 wavelengths.
The TNF1OPM8 board consists of the 1x8 optical switch, optical power monitor module, driving and control module, control and communication module, and power supply module.
Functions and features of the TNF1OPM8 board
Function and Feature |
Description |
Basic function |
Provides eight ports, each of which supports spectrum analysis for up to 80 wavelengths. |
Spectrum application |
Supports C-band wavelengths. |
