TNF1MR801 Is Huawei OSN 1800 Fixed Optical Add/Drop Multiplexing Board Board
Huawei OSN 1800 Fixed Optical Add/Drop Multiplexing Board Board TNF1MR801 Overview

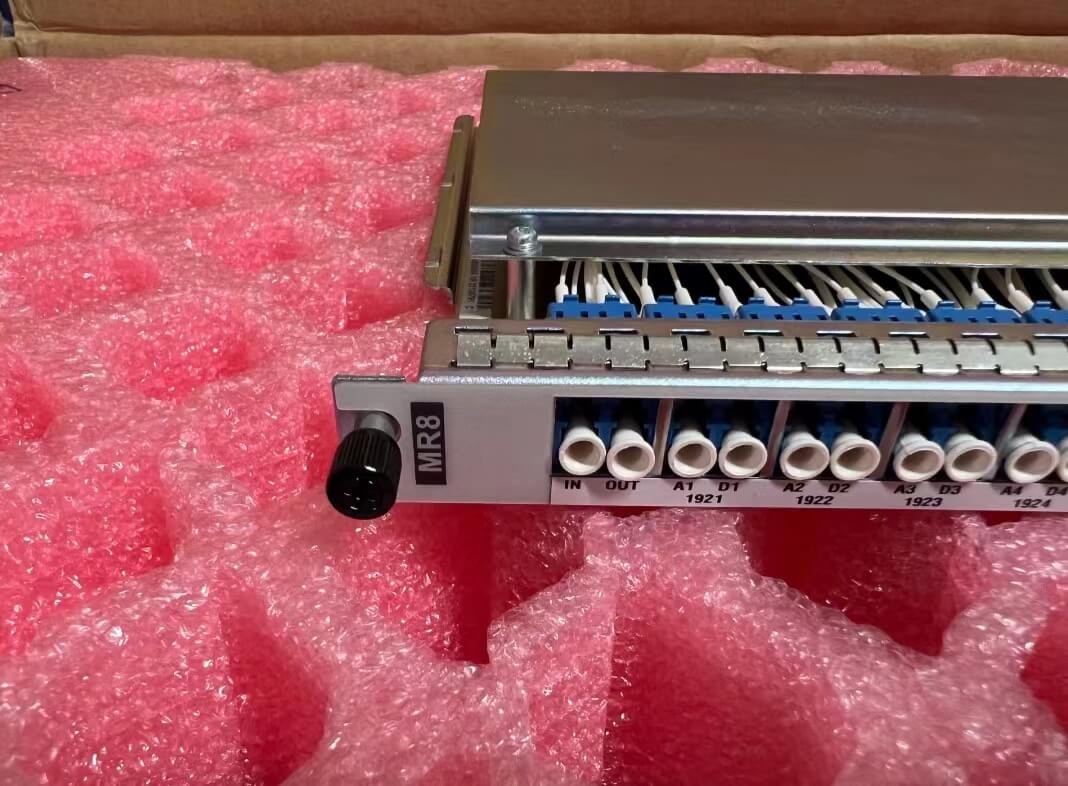

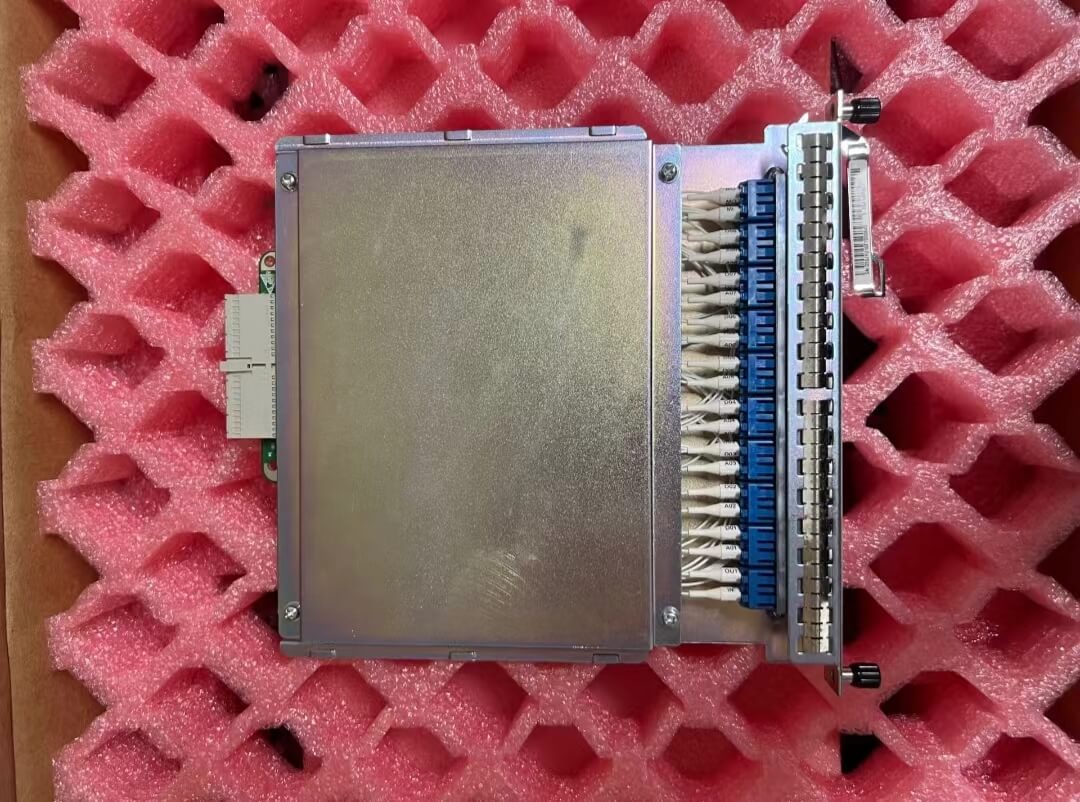

TNF1MR801: Eight Channel Optical Add/drop Multiplexing Board
The MR8 board mainly serves to add/drop eight channels of wavelength signals to/from the multiplexed signals in a direction.
The MR8 unit consists of the OADM optical module and the communication module.
Functions and Features of the TNF1MR801
Function and Feature |
Description |
Basic function |
Adds/Drops and multiplexes eight channels of signals to/from the multiplexed signals. |
WDM specification |
Supports the DWDM and CWDM specifications. NOTE: Only the MR822 board support CWDM specifications. |
Spectrum application |
Supports signals with a 100 GHz channel spacing. |
Cascading port |
Provides the interface to cascade another optical add and drop multiplexing board to achieve expansion. |
Optical-layer ASON |
Supported NOTE: Only supported when the TNZ5UXCMS/TNZ6UXCMS/TNZ8XCH board is used. |
