TNF1ITL06,Huawei OSN 1800 ITL Board

Huawei OSN 1800 ITL Board TNF1ITL06 Overview

ITL: interleaver board

The available hardware version for the ITL is: TNF1.

As a type of optical multiplexing and demultiplexing unit, the TNF1ITL06 board implements multiplexing/demultiplexing between the optical signals at a channel spacing of 100 GHz and the signals at a channel spacing of 50 GHz.

The TNF1ITL06 board is mainly used to multiplex and demultiplex signals, and to detect online optical spectrum.

The TNF1ITL06 board consists of the optical module, communication module.

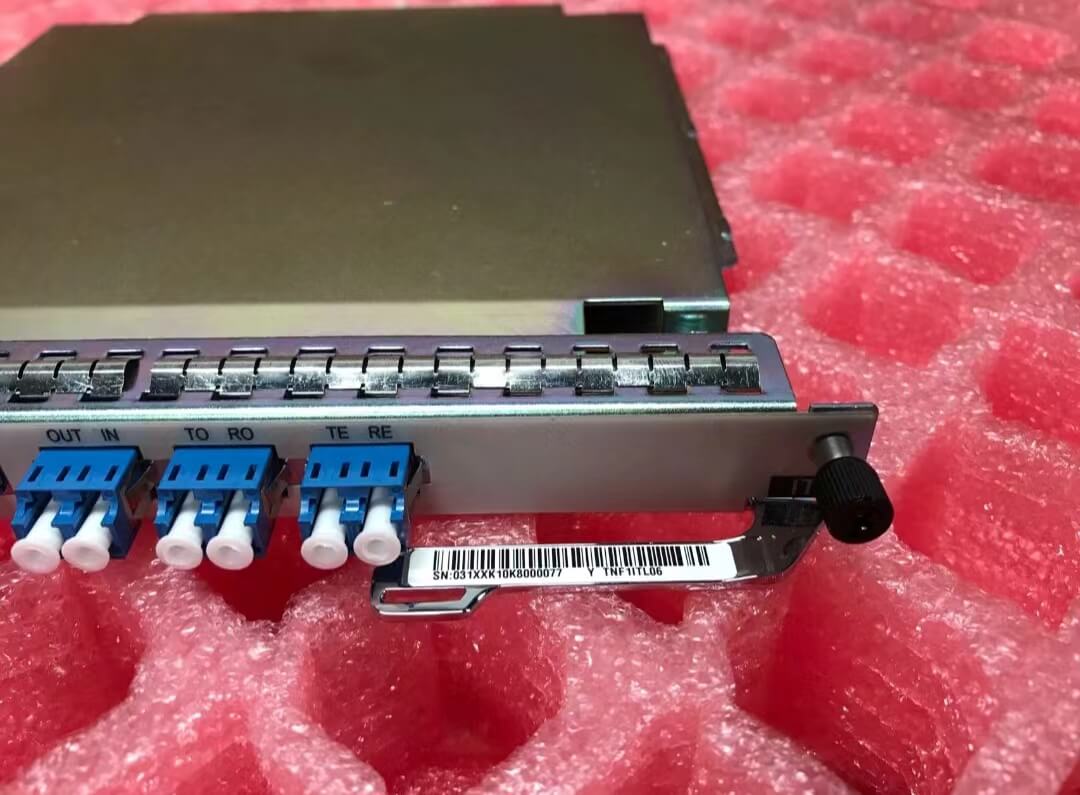

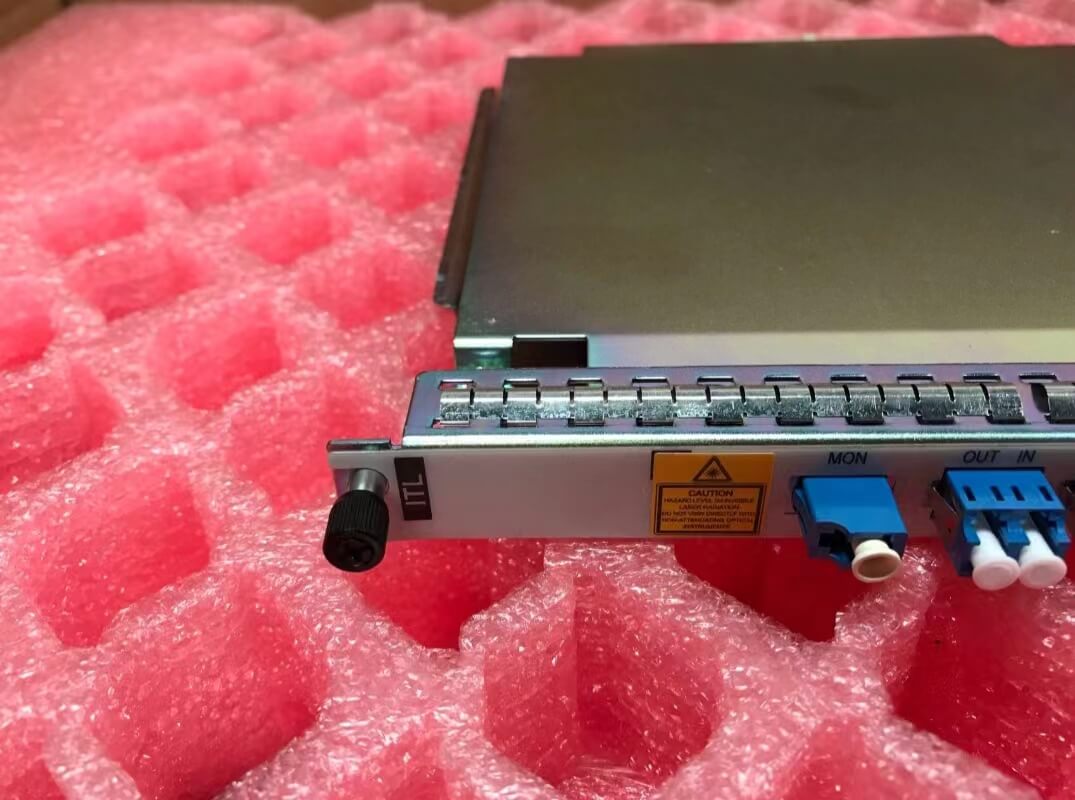

There are indicators, interfaces, and laser hazard level label on the front panel of the TNF1ITL06 board.

TNF1ITL06 occupies one slot.

Functions and features of the TNF1ITL06

Function and Feature	Description
Basic function	Multiplexes/demultiplexes optical signals between C_ODD signals and C_EVEN signals.
Detection and monitoring of the online spectrum	Provides an in-service monitoring port (MON). This port connects to an optical spectrum analyzer or spectrum analyzer unit to monitor the spectrum and optical performance of the multiplexed signal without affecting traffic.
Optical power detection	Supported
WDM specification	Supports the DWDM specification.
