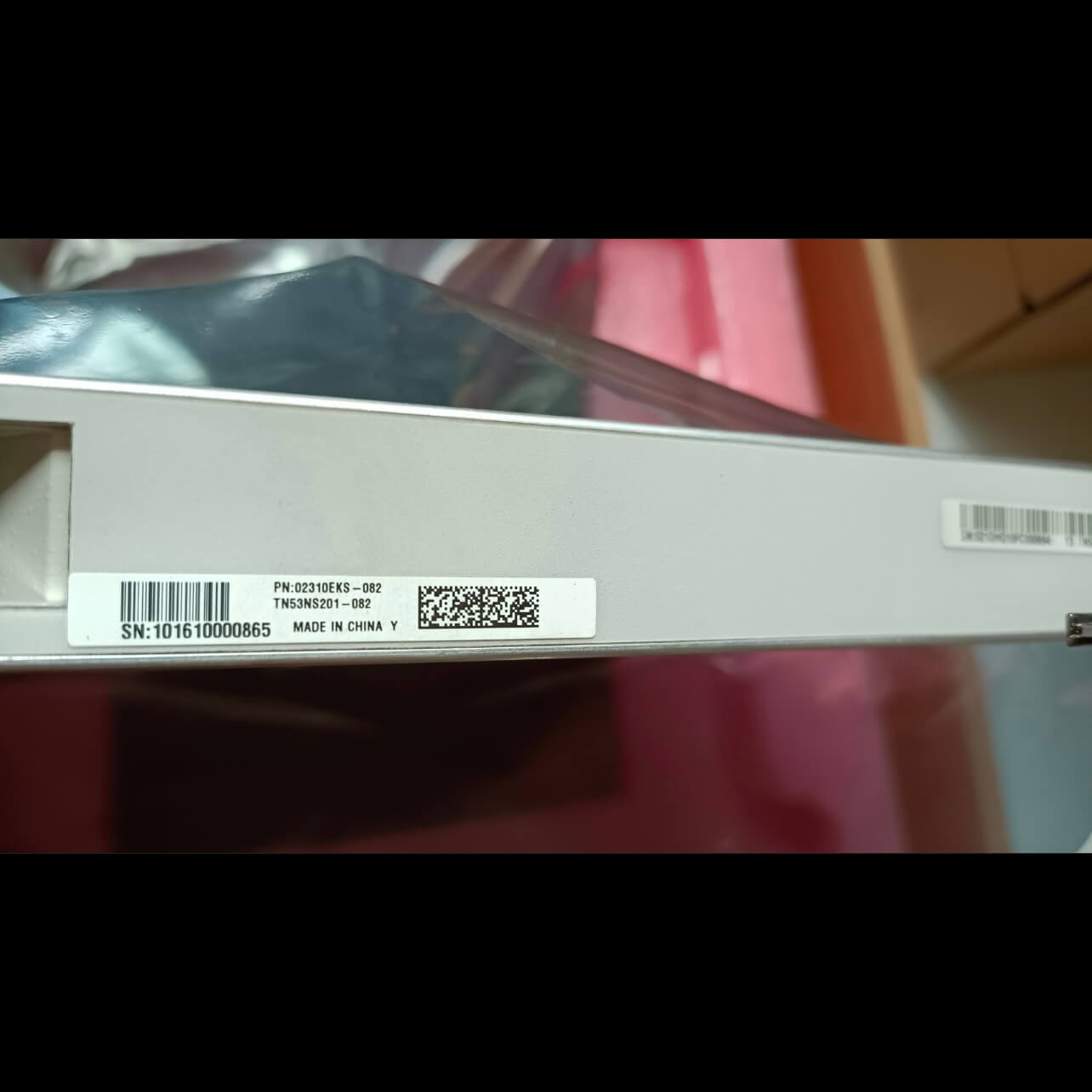

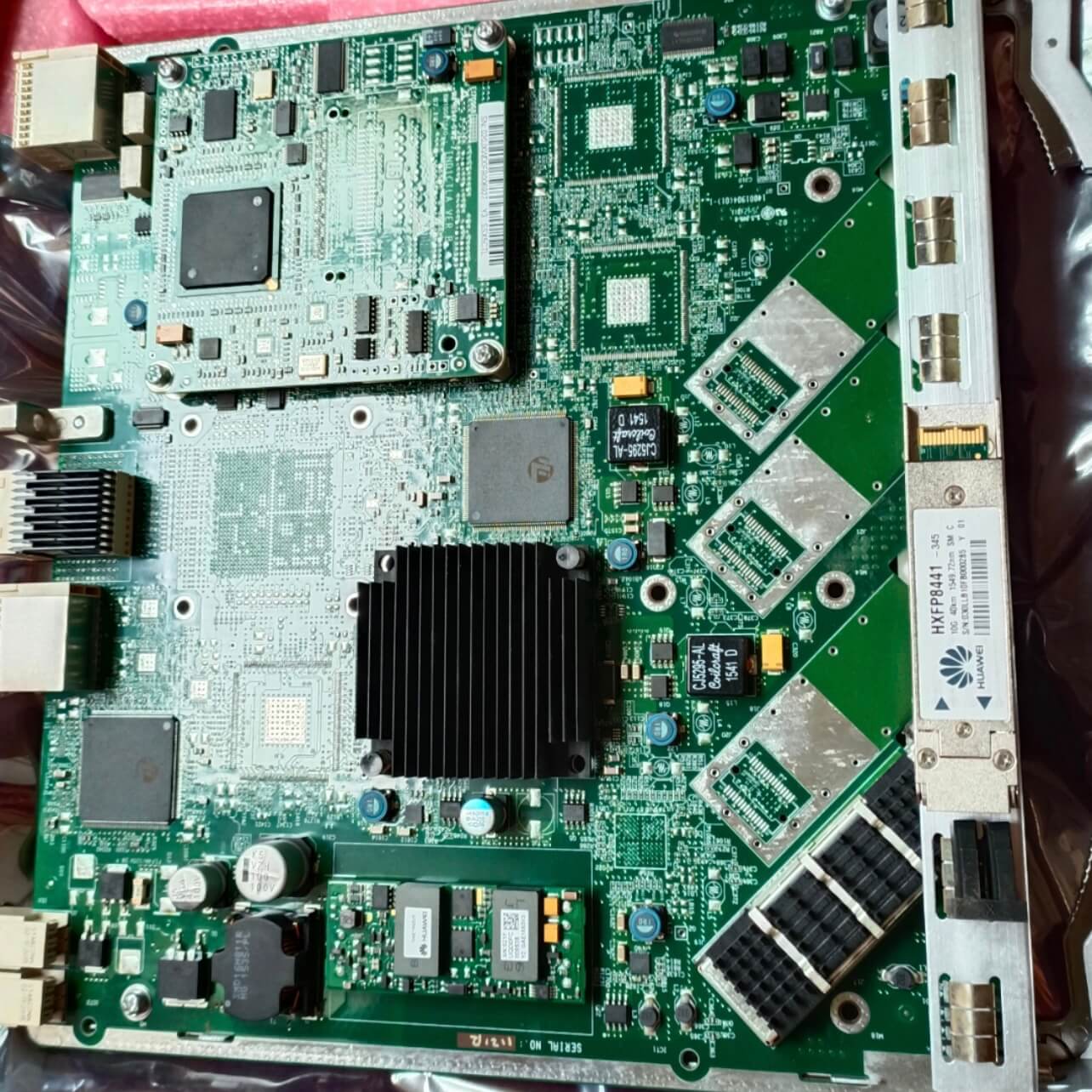

Huawei OSN 8800 OTN 10G Line Board TN53NS201 02310EKS

Basic function

NS2 converts signals as follows:

• TN11NS2:
  • 4xODU1<->1xOTU2
• TN12NS2:
  • 4xODU1/1xODU2<->1xOTU2
  • 1xODU2e<->1xOTU2e
• TN52NS2T02/TN52NS2T03:
  • 8xODU0/4xODU1/1xODU2<->1xOTU2
  • 1xODU2e<->1xOTU2e
• TN52NS2T04/TN52NS2T05/TN52NS2T06/TN52NS201M01/TN52NS201M02:
  • 8xODU0/4xODU1/1xODU2/2xODUflex<->1xOTU2
  • 1xODU2e<->1xOTU2e
• TN53NS2:
  • 8xODU0/4xODU1/1xODU2/2xODUflex<->1xOTU2
  • 1xODU2e<->1xOTU2e

Supports mixed transmission of ODU0, ODU1 and ODUflex signals.

Cross-connect capabilities

OptiX OSN 8800:

• TN52NS2T02/TN52NS2T03: Supports the cross-connection of eight channels of ODU0 signals, four channels of ODU1 signals or one channel of ODU2/ODU2e signals between the NS2 board and the cross-connect board.
• TN52NS2T04/TN52NS2T05/TN52NS2T06/TN52NS201M01/TN52NS201M02/TN53NS2: Supports the cross-connection of eight channels of ODU0 signals, four channels of ODU1 signals or two channels of ODUflex signals or one channel of ODU2/ODU2e signals between the NS2 board and the cross-connect board.

OptiX OSN 6800:

• TN11NS2: Supports the cross-connection of four channels of ODU1 signals between the NS2 board and the cross-connect board or the board in the paired slot.
• TN12NS2/TN52NS2/TN53NS2: Supports the cross-connection of four channels of ODU1 signals or one channel of ODU2/ODU2e signals between the NS2 board and the cross-connect board.

OptiX OSN 3800:

• TN11NS2: Supports the grooming of four channels of ODU1 signals from one board of the mesh group (consisting of four boards) to the other three boards belonging to the mesh group.
• TN12NS2/TN52NS2/TN53NS2: Supports grooming of four channels of ODU1 signals to any two boards in the non-paired slots of the four-slot mesh group, that is, supports an ODU1 cross-connection between slots IU2 and IU4, slots IU2 and IU5, slots IU3 and IU4, and slots IU3 and IU5.

OTN function

• Supports the OTU2/OTU2e interface on the WDM side.
• Supports the OTN frame format and overhead processing by referring to the ITU-T G.709.
• OTU2 layer: supports the SM function.
• ODUk (k=0, 1, 2) layer: supports the PM and TCM function, and PM and TCM non-intrusive monitoring functions.
• ODUflex layer: supports the PM and PM non-intrusive monitoring functions.

NOTE:

• Only the TN52NS2T04/TN52NS2T05/TN52NS2T06/TN52NS201M01/TN52NS201M02/TN53NS2 supports TCM and TCM non-intrusive monitoring for ODU0.
• Only the TN52NS2T04/TN52NS2T05/TN52NS2T06/TN52NS201M01/TN52NS201M02/TN53NS2 supports PM and PM non-intrusive monitoring for ODUflex.

WDM specification

Supports ITU-T G.694.1-compliant DWDM specifications.

Tunable wavelength function

Supports tunable wavelength optical modules that provide for:

• 40 wavelengths tunable in the C band with 100 GHz channel spacing
• 80 wavelengths tunable in the C band with 50 GHz channel spacing

ESC function

Supported

PRBS test function

Supports the PRBS function on the WDM side.

NOTE:

If the TN52NS2T04/TN52NS2T05/TN52NS2T06/TN52NS201M01/TN52NS201M02/TN53NS2 board interconnects with another line board, PRBS must be enabled for the board and the connected line board. In addition, the PRBS function can take effect on the boards only when the following condition is met:

The TN52NS2T04/TN52NS2T05/TN52NS2T06/TN52NS201M01/TN52NS201M02/TN53NS2 board works in standard mode and ODU0, ODU1, or ODUflex cross-connections are configured for the board, or the board works in compatible mode but no cross-connection is configured for it.

LPT function

Not supported

FEC coding

TN11NS2/TN12NS201M02/TN12NS201M03/TN12NS2T02/TN12NS2T03/TN12NS2T04/TN12NS2T05:

Supports ITU-T G.709-compliant forward error correction (FEC) on the WDM side.

Supports ITU-T G.975.1-compliant advanced forward error correction (AFEC) on the WDM side.

TN12NS2A/TN12NS2B/TN52NS2/TN53NS2:

Supports ITU-T G.709-compliant forward error correction (FEC) on the WDM side.

Supports ITU-T G.975.1-compliant AFEC-2 on the WDM side.

NOTE:

Boards that use different FEC modes cannot interconnect with each other.

Alarms and performance events monitoring

• Monitors BIP8 bytes (Bursty mode) to help locate line failures.
• Monitors parameters such as the bias current, temperature, and optical power of the laser.
• Monitors OTN alarms and performance events.

Regeneration board

The WDM-side signals from one TN11NS2/TN12NS201M02/TN12NS201M03/TN12NS2T02/TN12NS2T03/TN12NS2T04/TN12NS2T05 board can be regenerated by another TN11LSXR board.

The WDM-side signals from one TN12NS2A/TN12NS2B/TN52NS2/TN53NS2 board can be regenerated by another TN12ND2/TN52ND2/TN53ND2/TN55NO2/TN53NQ2/TN54NQ2 board.

ALS function

Not supported

Test frame

Not supported

IEEE 1588v2

The TN53NS2 board supports BC and OC mode, do not support TC and TC+OC mode.

Physical clock

Supported only when the TN53NS2 board receives ODU0/ODU1/ODUflex signals cross-connected from the backplane

Optical-layer ASON

Supported

Electrical-layer ASON

Supported by the TN52NS2/TN53NS2.

Protection scheme

• Supports ODUk SNCP.
• Supports intra-board 1+1 protection (when working with the OLP/DCP/QCP board).
• Supports OWSP protection.
• Supports ODUk SPRing protection.
• Supports tributary SNCP protection.

NOTE:

When the cross-connect granularity is ODUflex, the board does not support tributary SNCP protection and ODUk SPRing protection.
