TN52SRAPXF,Huawei OSN 8800 Optical Amplifier Board

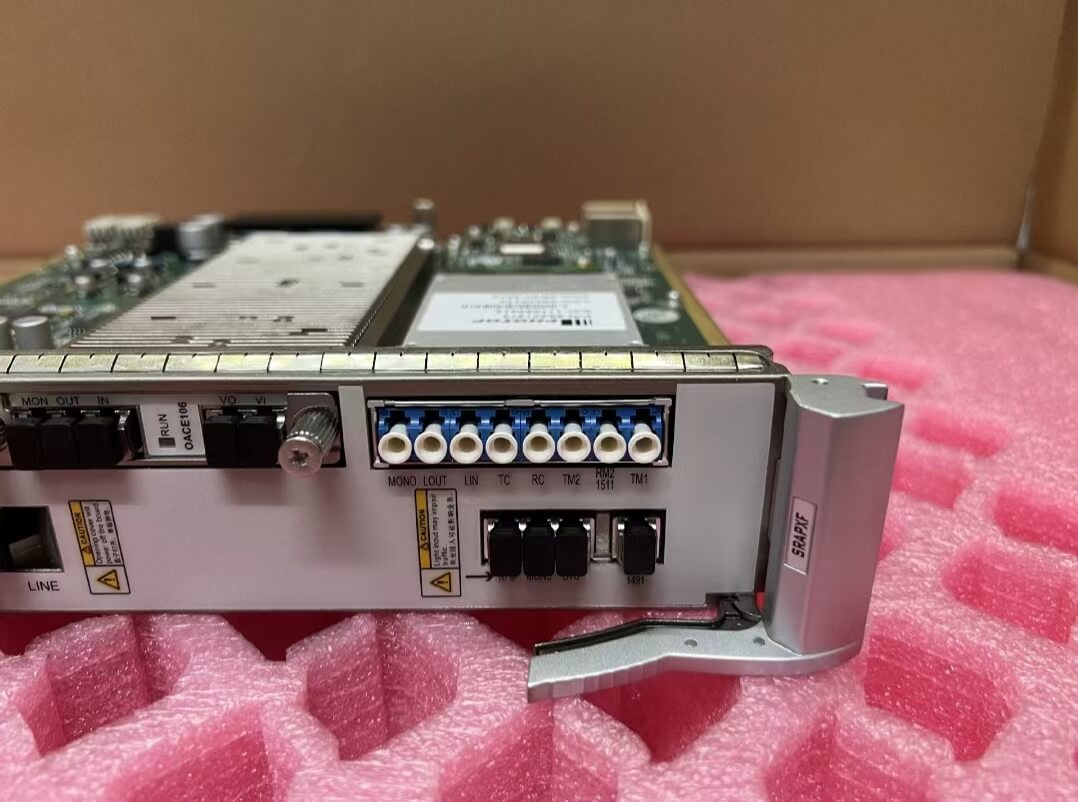

Huawei OSN 8800 Optical Amplifier Board TN52SRAPXF Overview

TN52SRAPXF: Extended C-band Super Backward Raman and Pluggable Erbium Doped Fiber Amplifier Hybrid Unit

The available hardware version of the SRAPXF board is TN52.

SRAPXF is a fiber amplifier board. The board is integrated with a backward Raman unit, EDFA unit, and XFIU unit to amplify optical signals and multiplex/demultiplex signals on optical supervisory channels and main optical channels. The board is mainly used at the receive end.

The SRAPXF board supports functions and features including gain adjustment, in-service optical performance monitoring, gain locking, and transient control.

The SRAPXF board consists of the Raman optical module, OTDR drive and receiving module, VOA, pluggable EDFA optical module, filter, drive and detection module, control and communication module, and power module.

SRAPXF Parameters Can Be Set or Queried by NMS

Functions and features of the TN52SRAPXF board

Function and Feature

Description

Basic functions

Integrates with a backward Raman unit and a pluggable EDFA unit to amplify extended C-band optical signals, covering wavelengths within the range of 1528.8 nm to 1567.6 nm.
Supports transmission without working with an electrical regenerator for various spans.
Generates high-power pump light of multiple wavelengths to supply power for amplifying signal light in transmission fibers.
Supports the interlock switch. The interlock switch of a LINE port on the panel controls the power-on and power-off of the board and prevents eyes from being injured by laser when a fiber is inserted into or removed from the LINE port.
Integrates with a VOA module to adjust optical power.
Integrates with an XFIU module to multiplex the wavelengths from the main optical channel and optical supervisory channel to the line-side channel and implements the reverse process.
Achieves commissioning-free and compensation-free for IEEE 1588v2 signals in the single-fiber bidirectional scenario with dual-OSC configuration.
