TN52SCC,03030LNB,Huawei OptiX OSN 9800 System Control and Communication Boards

Huawei OptiX OSN 9800 System Control and Communication Boards TN52SCC Overview

TN52SCC: system control and communication board

The SCC board has only one functional version: TN52.

As a system control board, the TN52SCC board collaborates with the NMS to manage other boards in the subrack, and implements inter-equipment communication.

The TN52SCC board manages and controls other boards in the subrack and implements inter-NE communication. It supports subrack cascading and power supply backup, and provides a clock source for system communications.

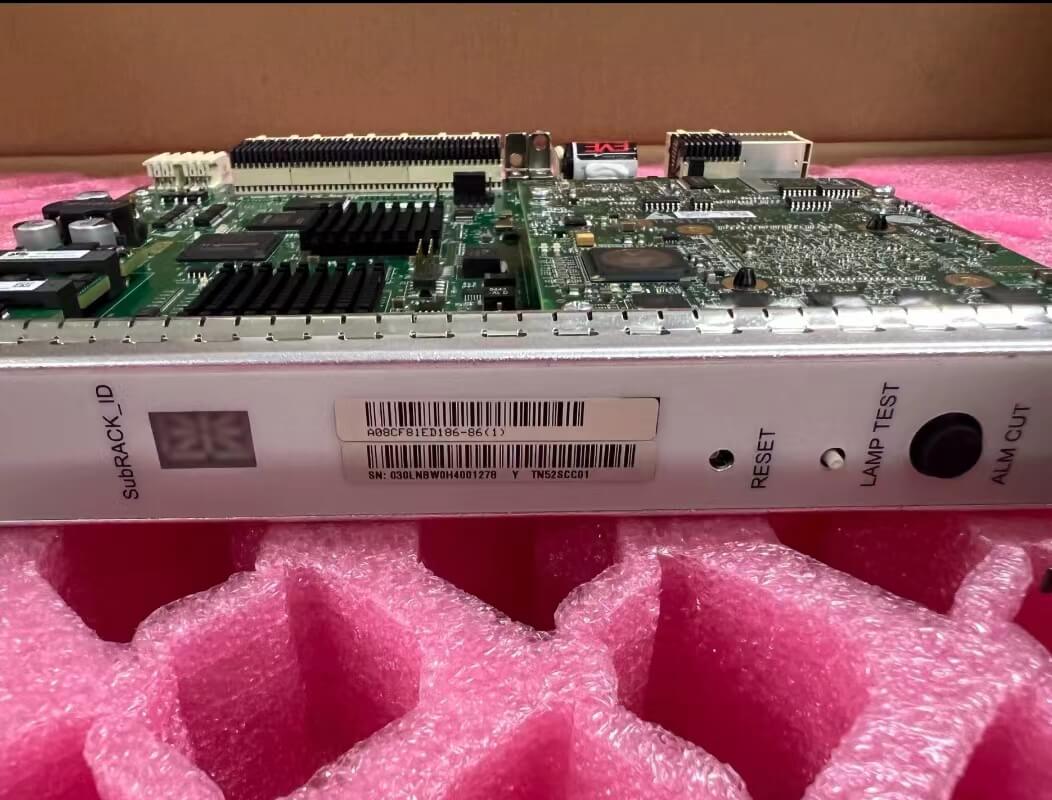

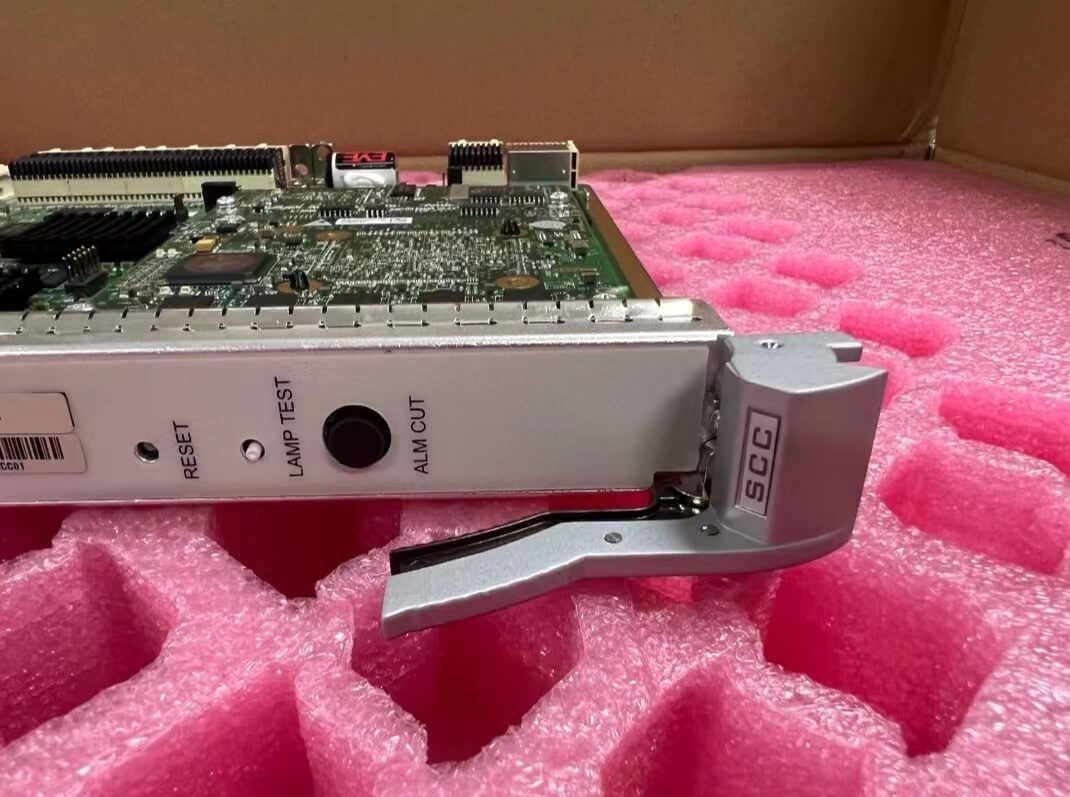

There are indicators, buttons, and a subrack LED on the front panel of the TN52SCC board.

The TN52SCC board is a single-width board (requiring one slot).

Functions and Features of the TN52SCC Board

Function and Feature	Description
Basic functions	Performs configuration management and reports associated alarms to the NMS. Supports the backup of NE data. When the NE data changes, the real-time database backup function immediately saves the changed configuration data into the storage medium to ensure that no configuration data is lost after the NE is reset (cold) or powered off. This data backup improves the reliability of the NE. Supports the backup of its data to a CF card. The user can back up NE data (except the NE IP, NE ID, Gateway ID, and Node ID) stored on the SCC board and the SCC board software to a CF card. After backing up the data to the CF card, the user does not need to re-provision an NE after replacing the NE's SCC board.
DCN communication	Supports inter-NE communication through IP over DCC or HWECC.
Active/Standby backup	Supports active/standby backup: Two SCC boards are configured for a subrack to provide 1+1 hot backup. If the active SCC board fails, the standby SCC board automatically becomes active.

Hunan Moka Information Technology Co., Ltd.

A professional import and export trade company specializing in the agency sales and services of the full range of Huawei telecom equipment,Huawei parts,Cisco products. Our product range includes Huawei Microwave,Huawe DWDM,Huawei SDH,Huawei OSN Series,Huawei parts, Cisco switches, Cisco routers, Cisco firewalls, Cisco wireless APs, Cisco conference terminals, Cisco optical modules, Cisco fiber optic jumpers, Cisco industrial switches, and Cisco software licenses. As an authorized distributor of Cisco in China, we directly purchase hardware and software from Cisco China in the name of projects. As a result, you can obtain the best discounts from Cisco China, typically ranging from 60% to over 90%. Due to Cisco's global sales policy, if you order Cisco licenses, with your consent and permission, we will assist you in installing and activating Cisco licenses within China. Alternatively, you can activate them in your own country, and we will transfer the licenses to you. All you need is a Cisco Smart Account. When the Cisco licenses expire, you can choose to renew them yourself or contact us.

As an authorized distributor of Cisco in China, we directly purchase hardware and software from Cisco China in the name of projects.

Huawei OptiX OSN 9800 System Control and Communication Boards TN52SCC 03030LNB
