Huawei OSN 9800 Reconfigurable Optical Add/Drop Multiplexer Boards TN15WSMD9 Overview

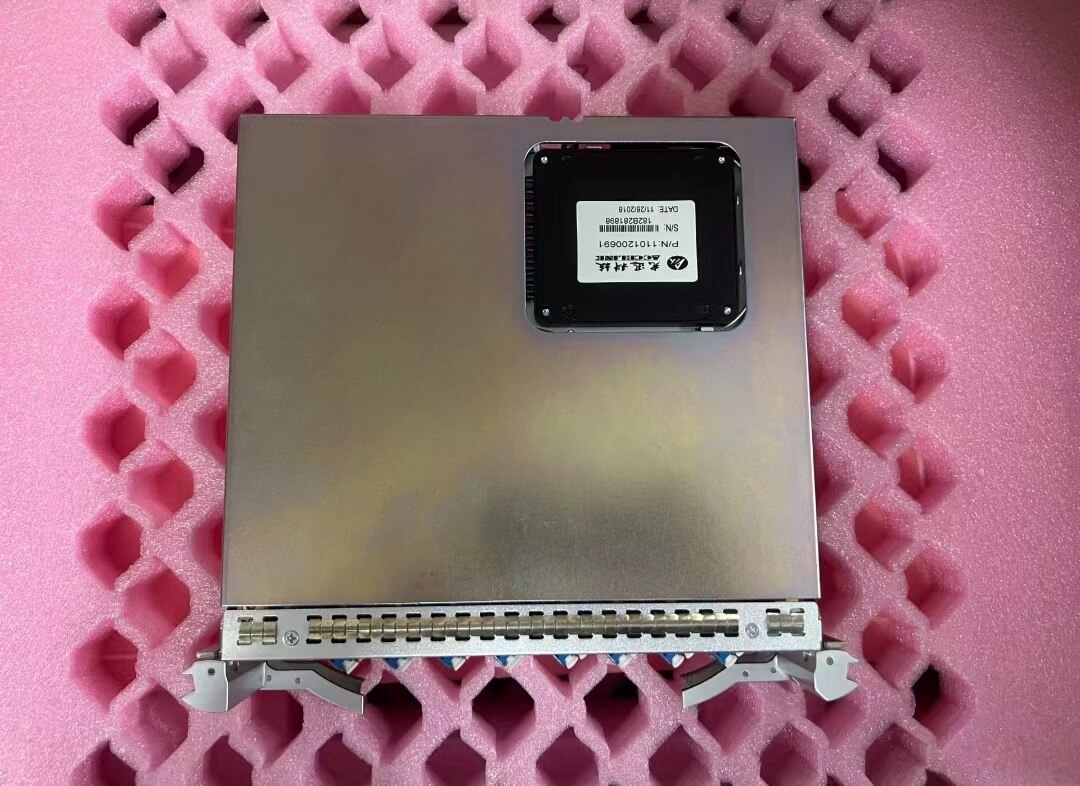

WSMD9: 9-port wavelength selective multiplexer and demultiplexer board
The available functional versions of the WSMD9 board are TN11, TN12 ,TN15 and TN52.
As a ROADM unit, the TN15WSMD9 board is used with optical multiplexer boards, optical demultiplexer boards, or other OADM boards to perform wavelength grooming at DWDM network nodes.
The TN15WSMD9 board supports wavelength broadcast, dynamic wavelength grooming, resizable channel bandwidths, in-service monitoring of optical performance, and alarms and performance events monitoring.
The TN15WSMD9 board consists of an RDU module, WSS module, optical power detection module, control and communication module, and power supply module.
The TN15WSMD9 board is a double-width board (requiring two slots).
Functions and features of the TN15WSMD9 board
Function and Feature |
Description |
Basic function |
Implements optical-layer service grooming for multiple wavelengths. Wavelength adding: adds any wavelengths from any directions through ports AM1 to AM8 and the EXPI port and outputs the wavelengths through the OUT port. Wavelength dropping: broadcasts the main optical channel signals received through the IN port to ports DM1 to DM8 and the EXPO port. |
WDM specification |
Supports the DWDM specification. |
