TN15OBU107P Is Huawei OSN 8800 Optical Amplifier Board
Huawei OSN 8800 Optical Amplifier Board TN15OBU107P Overview
TN15OBU107P: optical booster unit
The available functional versions of the OBU1 board is TN15
As an optical amplifier unit, the TN15OBU107P board is used at the transmit or receive end to amplify C-band optical signals.
The TN15OBU107P board amplifies C-band optical signals and supports in-service optical performance monitoring, gain locking, and transient state control.
The TN15OBU107P board consists of an EDFA module, driver and detection module, control and communication module, and power supply module.

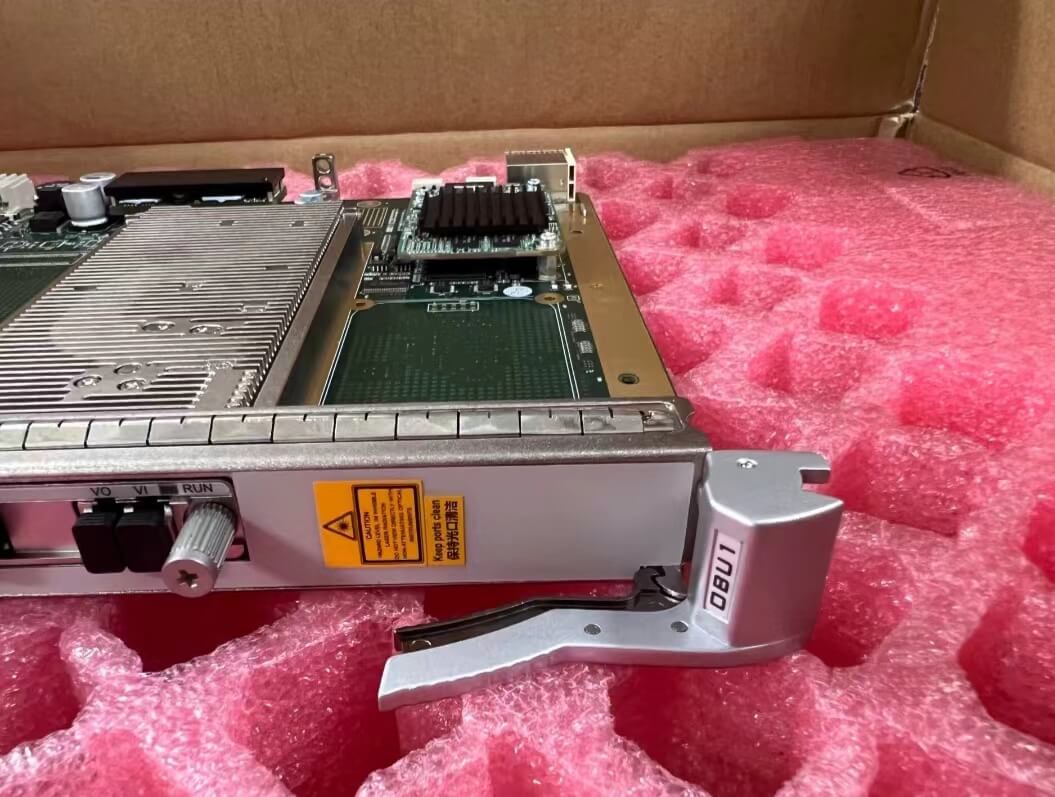

There are indicators, interfaces, and a laser hazard level label on the front panel of the TN15OBU107P board.
The TN15OBU107P board is a single-width board (requiring one slot).
Functions and features of the TN15OBU107P board
Function and Feature |
Description |
Basic functions |
|
Typical gain |
|
