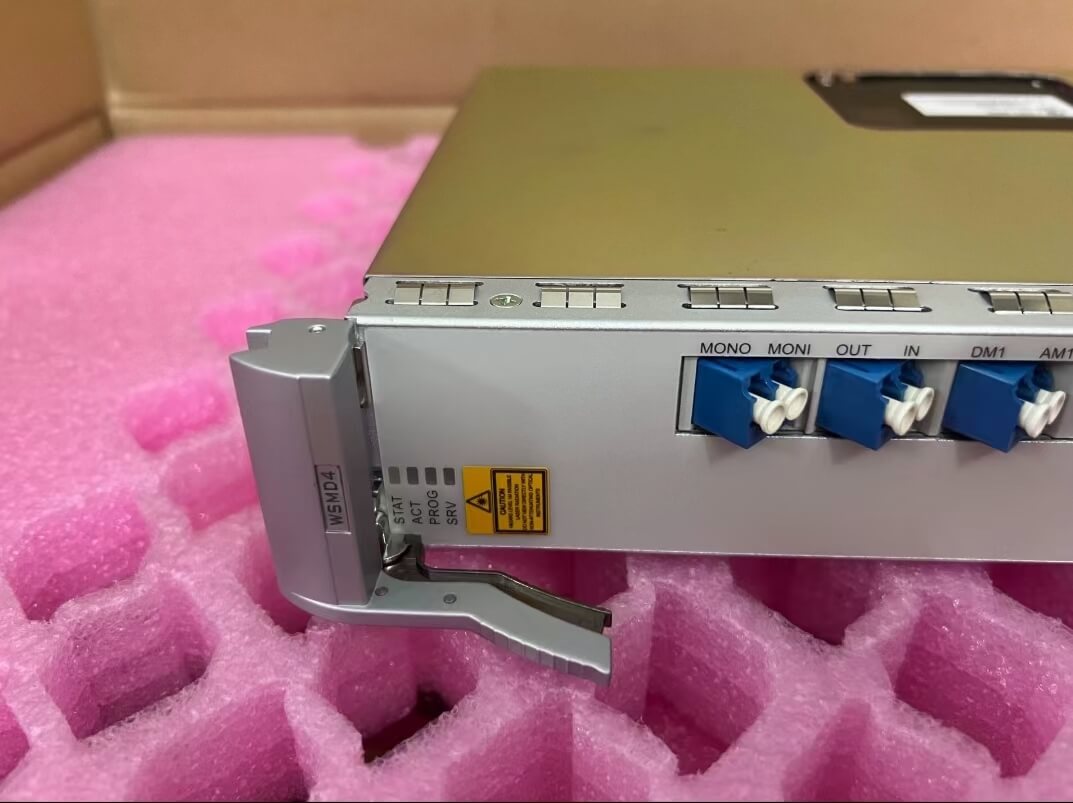

Huawei Optix OSN 9800 Reconfigurable Optical Add/Drop Multiplexer Boards TN13WSMD4 Overview

WSMD4: 4-Port Wavelength selective multiplexing and Demultiplexing board

The WSMD4 board has four functional versions: TN11, TN12, TN13, and TN17. Together these four versions are referred to as the WSMD4 board unless otherwise specified.

As a ROADM unit, the WSMD4 board is used with optical multiplexer boards, optical demultiplexer boards, or other OADM boards to perform wavelength grooming at DWDM network nodes.

The WSMD4 board supports wavelength broadcast, dynamic wavelength grooming, in-service monitoring of optical performance, and alarms and performance events monitoring.

The WSMD4 board consists of an RDU module, WSS module, temperature and optical power detection module, control and communication module, and power supply module.

Functions and features of the TN13WSMD4 board

Function and Feature	Description
Basic function	Supports wavelength broadcast and dynamic add/drop of wavelengths from/through any port on ring or chain networks. With the wavelength broadcast function, this board can broadcast the main channel signal received through the IN port in four directions (through the DM1-DM4 ports). In addition, this board can receive any locally added single wavelength or wavelength combination through any of the AM1-AM4 ports.
WDM specification	Supports the DWDM specification.
Spectrum application	TN11WSMD4/TN17WSMD4 Supports signals with a 100 GHz channel spacing. TN12WSMD4 Supports signals with a 50 GHz channel spacing. TN13WSMD4 Supports signals with a 50 GHz channel spacing. Supports flexible grid wavelength signals. The signals have continuous n x slice GHz spectrums (one slice is equal to 50 GHz, and n is an integer ranging from 1 to 8) to meet the bandwidth requirements of high-rate services. When multi-rate services are transmitted together, Gridless flexibly allocates bandwidth to improve the bandwidth utilization efficiency.
