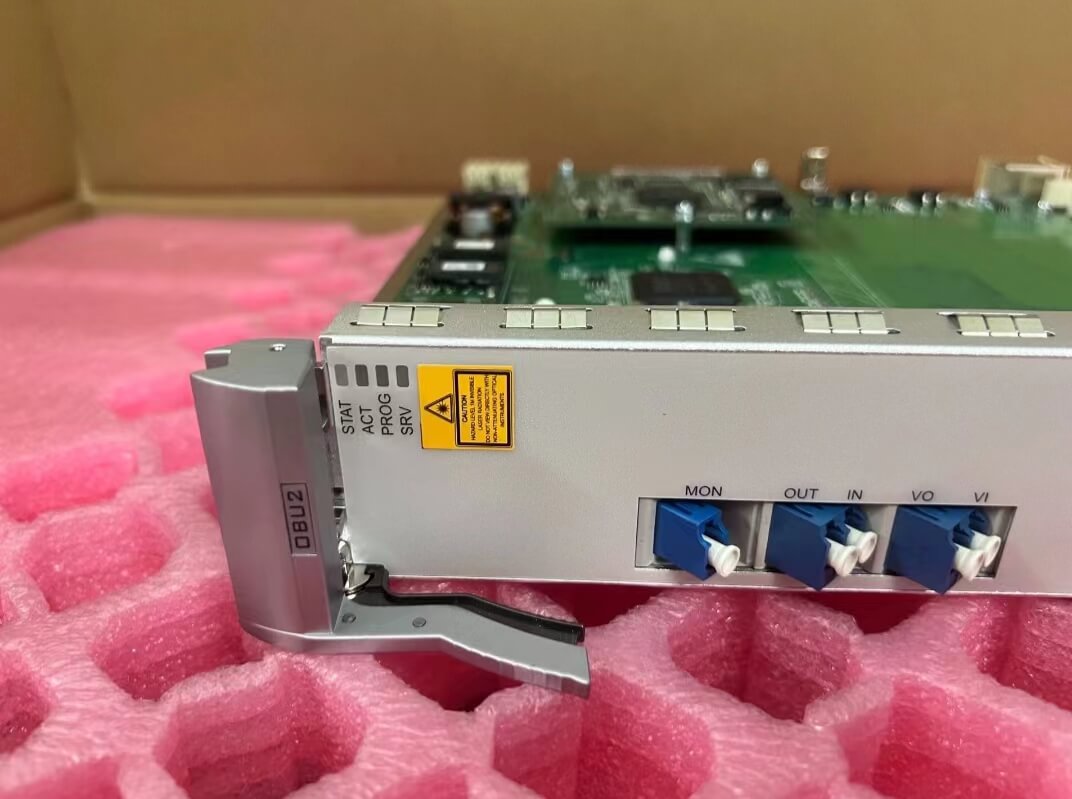

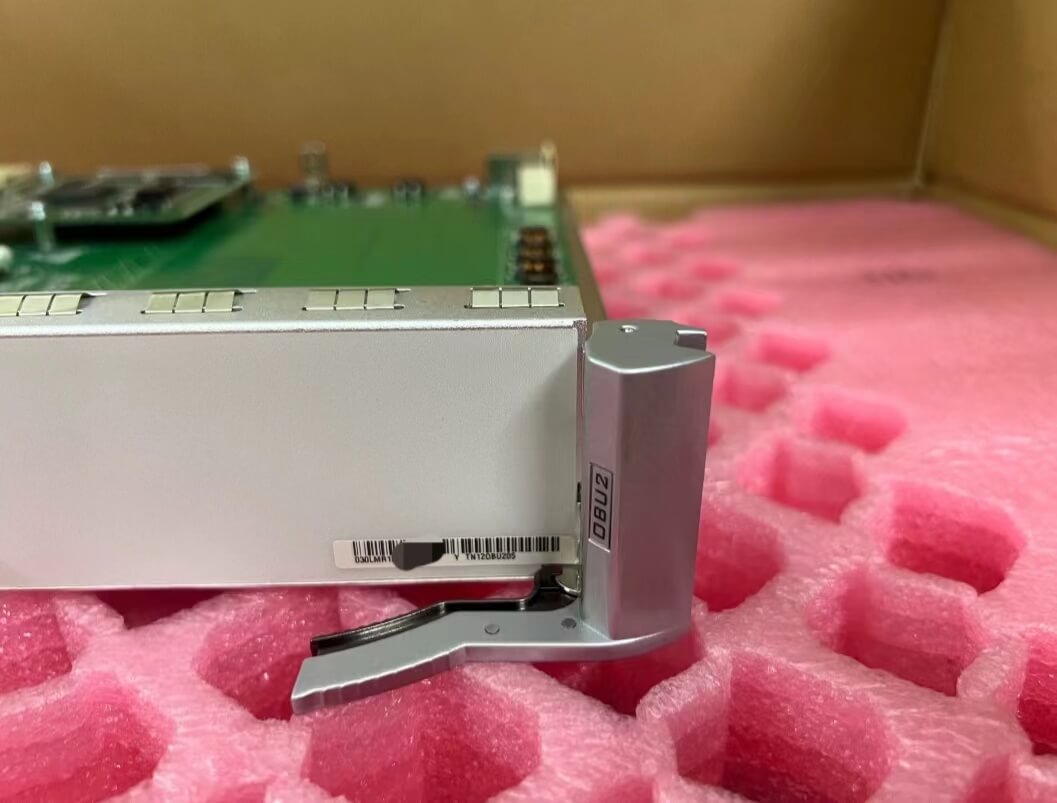

Huawei OSN 8800 Optical Amplifier Board TN12OBU205 03030LMR

Function and Feature

Description

Basic function

1. Amplifies the input optical signals in C band. The total wavelengths range from 1529 nm to 1561 nm.
2. Supports the system to transmit services over different fiber spans without electrical regeneration.

Typical gain

The typical gain of the TN11OBU2/TN12OBU2/TN13OBU2 is 23 dB.

The typical gain of the TN14OBU2 is 20 dB.

NOTE:

OBU2 Specifications only provides the value of nominal gain. Actual gain includes the noise, and the value is bigger than that of nominal gain.

Online optical performance monitoring

Provides an in-service monitoring port (MON). This port connects to an optical spectrum analyzer or spectrum analyzer unit to monitor the spectrum and optical performance of the multiplexed signal without affecting traffic.

Gain lock function

The EDFA inside the board has the gain lock function. Adding or dropping one or more channels or optical signal fluctuation does not affect the signal gain of other channels.

Working mode

Supports the gain locking and power locking modes.

1. In the gain locking mode, the gain of the board is tunable and users can query the actual gain of the board. The gain locking mode is enabled by default.
2. The power locking mode applies to scenarios in which there is only dummy light to lock the output power of the board.

Transient control function

The EDFA inside the board has the transient control function. When channels are added or dropped, the board can suppress the fluctuation of the optical power in the path so as to implement the smooth upgrading and expansion.

Alarms and performance events monitoring

1. Detects and reports the optical power.
2. Monitors the temperature of the pump laser.
3. Detects the pump driving current, back facet current, pump cooling current, temperature of the pump laser and the ambient temperature of the board.

Optical-layer ASON

TN11OBU2/TN12OBU2: Supported

TN13OBU2/TN14OBU2: Not supported
