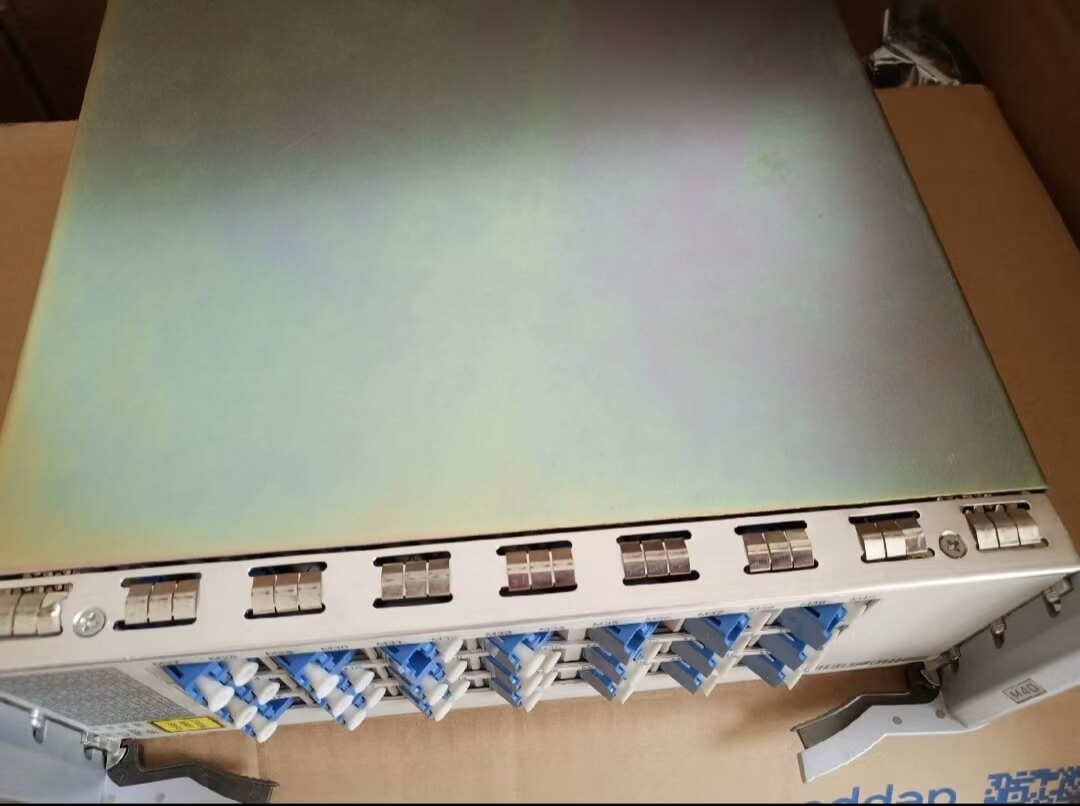

TN11M4002 Is Huawei Optix OSN 6800 Optical Multiplexer and Demultiplexing Board
Huawei Optix OSN 6800 Optical Multiplexer and Demultiplexing Board TN11M4002 03030GFK Overview
M40: 40-channel multiplexing board
The available functional versions of the M40 board are TN11 and TN12.
As a type of optical multiplexing unit, the TN11M40 board multiplexes a maximum of 40 channels of signals into one channel of signals that comply with ITU-T Recommendations.
The M40 board is mainly used to multiplex signals, monitor performance of optical signals, and monitor alarms and performance events.
The M40 board consists of the optical module, detection and temperature control module, control and communication module, and power supply module.
Three slots house one TN11M40 board and two slots house one TN12M40 board.
Functions and Features of the TN11M4002 Board
Function and Feature |
Description |
Basic function |
Multiplexes a maximum of 40 channels of signals into one channel of multiplexed signals.
|
