TMK1NP400M,Huawei OptiXtrans E6600 Turbo WDM Board

Huawei OptiXtrans E6600 Turbo WDM Board TMK1NP400M Overview

TMK1NP400M: One OTUC2 wavelength conversion optical-to-electrical integrated line service processing basic board (expandable to 400G)

The TMK1NP400M newly supports the TMK6XCH board of the E6616.

The NP400M board consists of the client-side optical module, service processing module, PID optical module, control and communication module, and power module.

Functions and features of the TMK1NP400M board

Function and Feature	Description
Backplane capacity	The total backplane bandwidth is 200 Gbit/s.
Client-side service type	FE: Ethernet service at a rate of 125 Mbit/s GE: Ethernet service at a rate of 1.25 Gbit/s 10GE WAN: Ethernet service at a rate of 9.95 Gbit/s 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s 25GE: Ethernet service at a rate of 25.78 Gbit/s 40GE: Ethernet service at a rate of 41.25 Gbit/s 50GE: Ethernet service at a rate of 50 Gbit/s 100GE: Ethernet service at a rate of 103.125 Gbit/s STM-64/OC-192: SDH/SONET service at a rate of 9.95 Gbit/s FC800: SAN service at a rate of 8.5 Gbit/s FC1200: SAN service at a rate of 10.51 Gbit/s FC1600: SAN service at a rate of 14.025 Gbit/s FC3200: SAN service at a rate of 28.05 Gbit/s FICON 8G: SAN service at a rate of 8.5 Gbit/s FICON 10G: SAN service at a rate of 10.51 Gbit/s InfiniBand 2.5G: SAN service at a rate of 2.5 Gbit/s InfiniBand 5G: SAN service at a rate of 5 Gbit/s InfiniBand 10G: SAN service at a rate of 10 Gbit/s OTU2: OTN service at a rate of 10.71 Gbit/s OTU2e: OTN service at a rate of 11.1 Gbit/s OTU4: OTN service at a rate of 111.81 Gbit/s

Hunan Moka Information Technology Co., Ltd.

A professional import and export trade company specializing in the agency sales and services of the full range of Cisco products in the United States. Our product range includes Cisco switches, Cisco routers, Cisco firewalls, Cisco wireless APs, Cisco conference terminals, Cisco optical modules, Cisco fiber optic jumpers, Cisco industrial switches, and Cisco software licenses. As an authorized distributor of Cisco in China, we directly purchase hardware and software from Cisco China in the name of projects. As a result, you can obtain the best discounts from Cisco China, typically ranging from 60% to over 90%. Due to Cisco's global sales policy, if you order Cisco licenses, with your consent and permission, we will assist you in installing and activating Cisco licenses within China. Alternatively, you can activate them in your own country, and we will transfer the licenses to you. All you need is a Cisco Smart Account. When the Cisco licenses expire, you can choose to renew them yourself or contact us.

As an authorized distributor of Cisco in China, we directly purchase hardware and software from Cisco China in the name of projects.

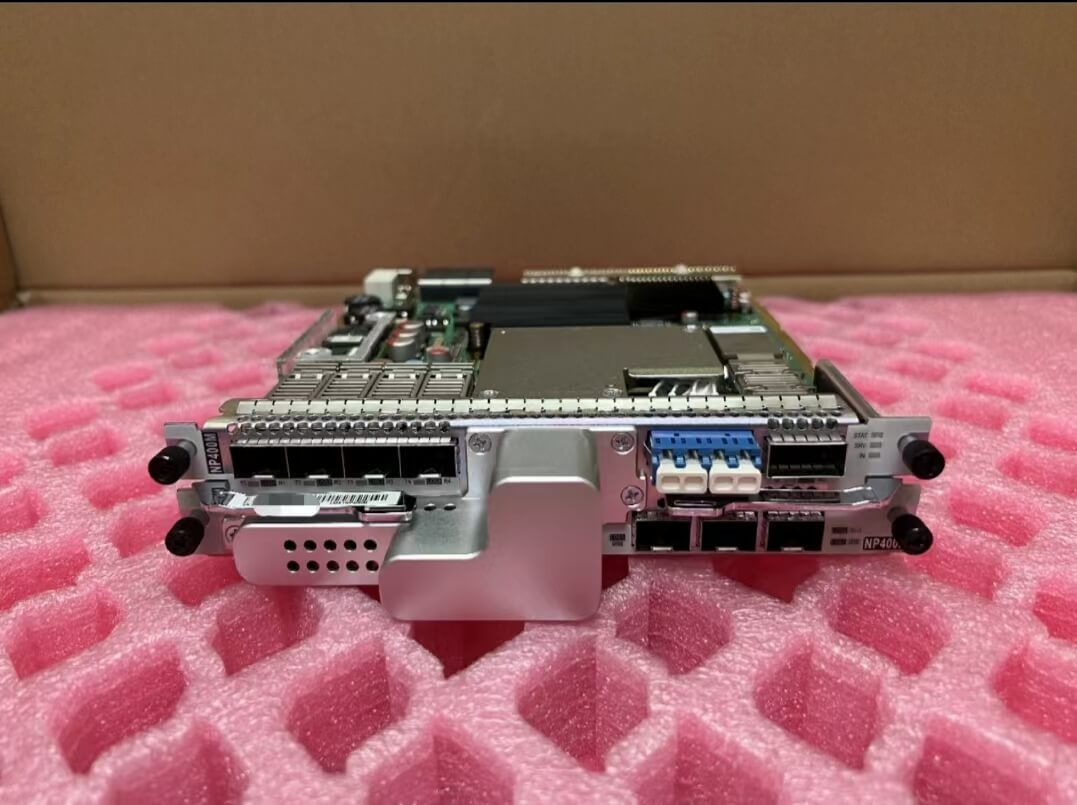

Huawei OptiXtrans E6600 Turbo WDM Board TMK1NP400M
