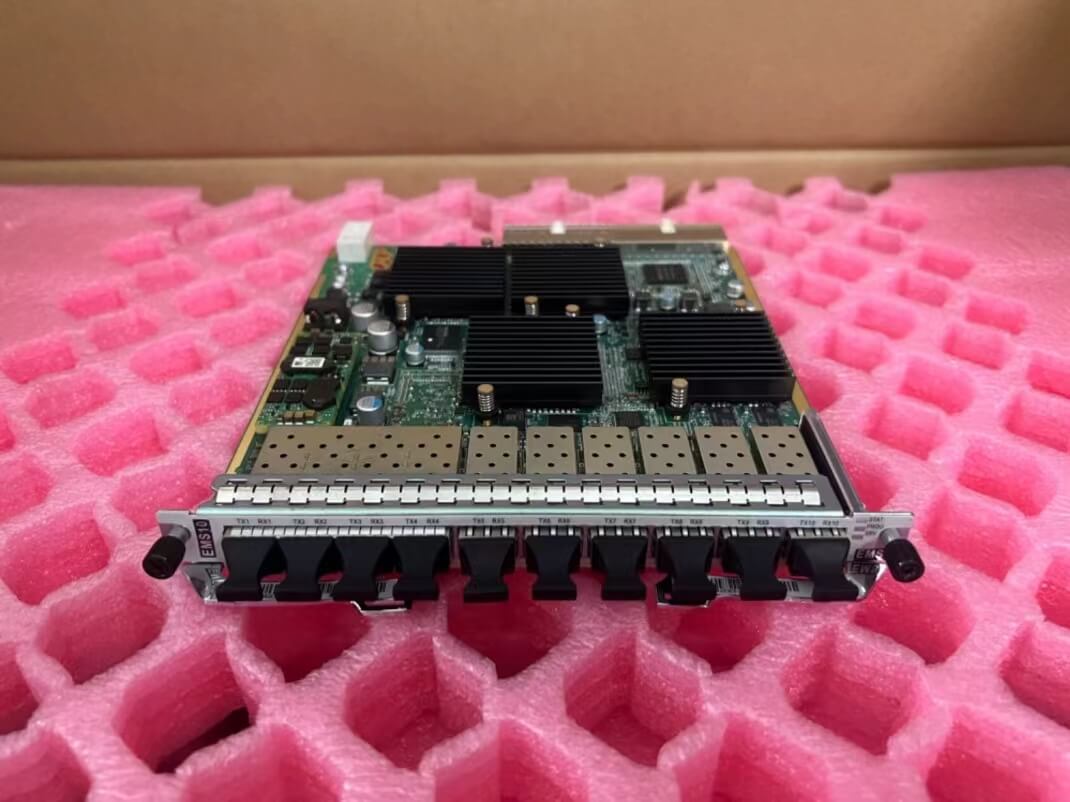

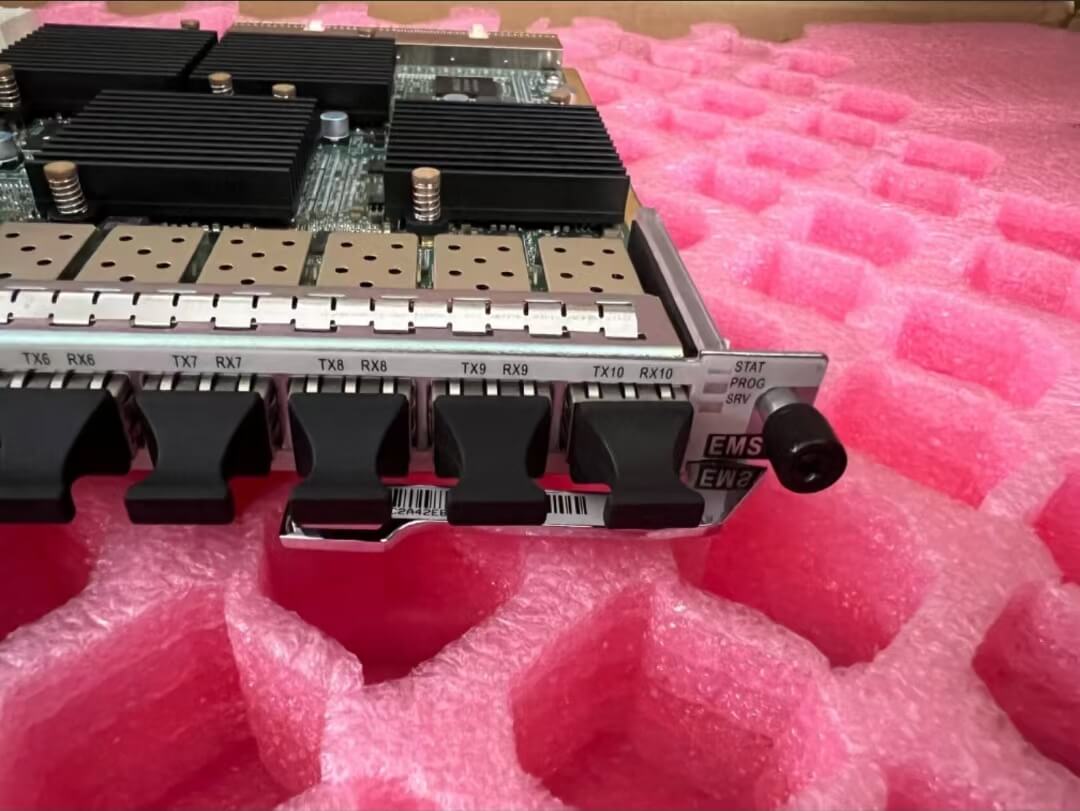

TMB1EMS10 Is Huawei OptiXtrans E6600 EoS switching and processing board
Huawei OptiXtrans E6600 EoS switching and processing board TMB1EMS10 03026VGG Overview
TMB1EMS10: 10-channel Ethernet service EoS switching and processing board
The EMS10 board is mainly used in the telecommunications application fields such as Ethernet service access, bandwidth management, and Ethernet service Layer 2 switching. This board can also be used in the EoS and EoD applications.
The TMB1EMS10 board can transfer packet services from the backplane and perform EoS encapsulation and mapping.
The TMB1EMS10 board consists of the Ethernet service processing unit, encapsulation/mapping unit, virtual port processing unit, logic control unit, power supply unit, and clock unit.
Functions and features of the TMB1EMS10 board
Function and Feature |
Description |
Basic function |
Transmits/Receives ten Ethernet services, encapsulates and maps the Ethernet services into SDH signals, and forwards the SDH signals to the SDH plane for transmission. |
