SSN3SL16A09,03052447,Huawei Optix OSN 7500 SDH Board

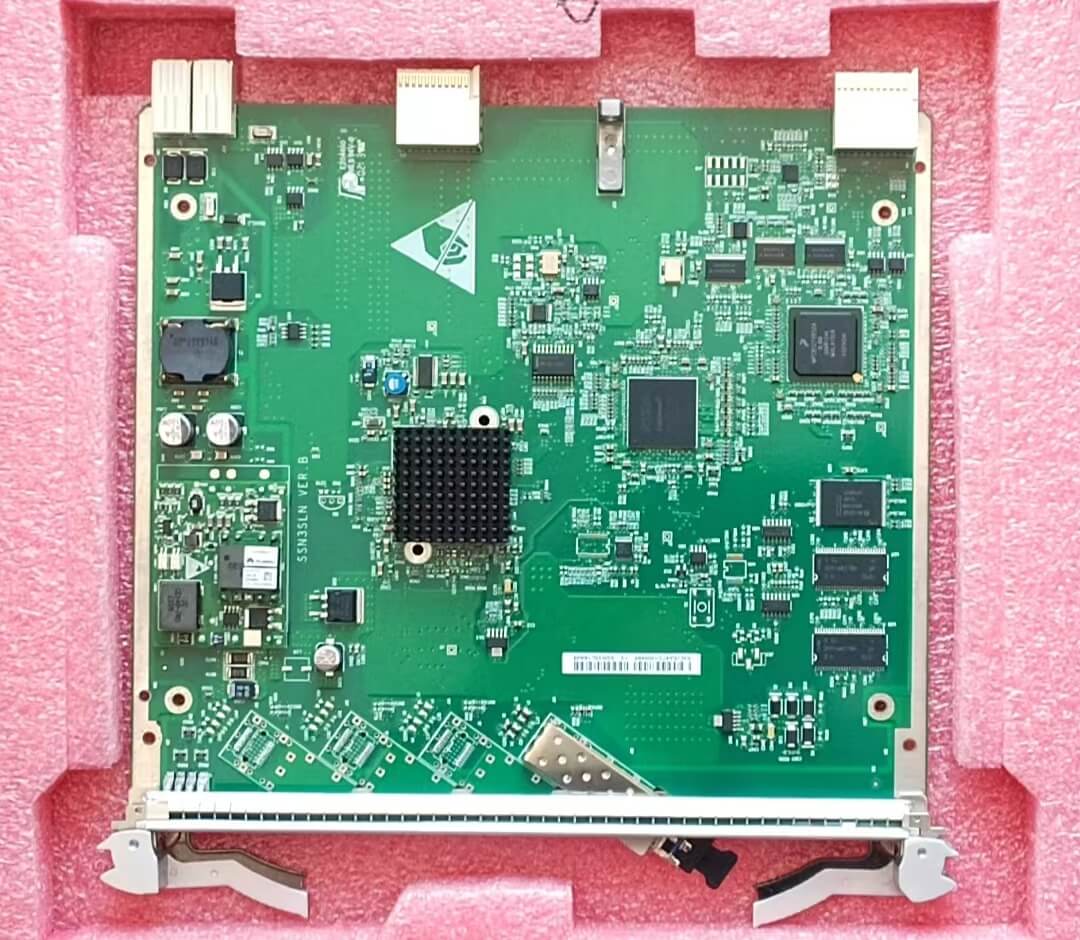

Huawei Optix OSN 7500 SDH Board SSN3SL16A09 03052447 Overview

SL16A (1xSTM-16 optical interface board)

The SL16A is available in the following functional versions: N3, N2, and N1. The N1SL16A and N2SL16A are discontinued.

The SSN3SL16A09 is a line board. The SL16A can be used on the OptiX OSN equipment series to transmit and receive STM-16 optical signals. The SL16A converts the received optical signals into electrical signals and sends the electrical signals to the cross-connect side. In addition, the SL16A converts the electrical signals sent from the cross-connect side into optical signals and transmits the optical signals.

The SL16A receives and transmits 1xSTM-16 optical signals, processes overhead bytes, and performs the MSP.

The N3SL16A consists of the O/E converting module, MUX/DEMUX module, SDH overhead processing module, logic and control module, and power module.

The SL16A must be installed in a valid slot in the subrack. Otherwise, the SL16A fails to work normally.

Functions and Features of the SSN3SL16A09 Board

Function and Feature	SL16A
Basic functions	Transmits and receives 1xSTM-16 optical signals.
Specifications of the optical interface	Supports different types of standard optical interfaces, namely, the I-16, S-16.1, L-16.1, and L-16.2. The characteristics of the optical interfaces comply with ITU-T G.957 and ITU-T G.692. The N3SL16A supports U-16.2Je (with the BA and pre-amplifier (PA)). The characteristics of the optical interfaces of the U-16.2Je (with the BA and PA) comply with the standards defined by Huawei. U-16.2Je is compatible with U-16.2.

Function and Feature

SL16A

Basic functions

Transmits and receives 1xSTM-16 optical signals.

Specifications of the optical interface

Supports different types of standard optical interfaces, namely, the I-16, S-16.1, L-16.1, and L-16.2. The characteristics of the optical interfaces comply with ITU-T G.957 and ITU-T G.692.

The N3SL16A supports U-16.2Je (with the BA and pre-amplifier (PA)). The characteristics of the optical interfaces of the U-16.2Je (with the BA and PA) comply with the standards defined by Huawei. U-16.2Je is compatible with U-16.2.
