BPA,SSN2BPA01,03030GQM,Huawei OptiX OSN 3500 Optical Amplifier Boards

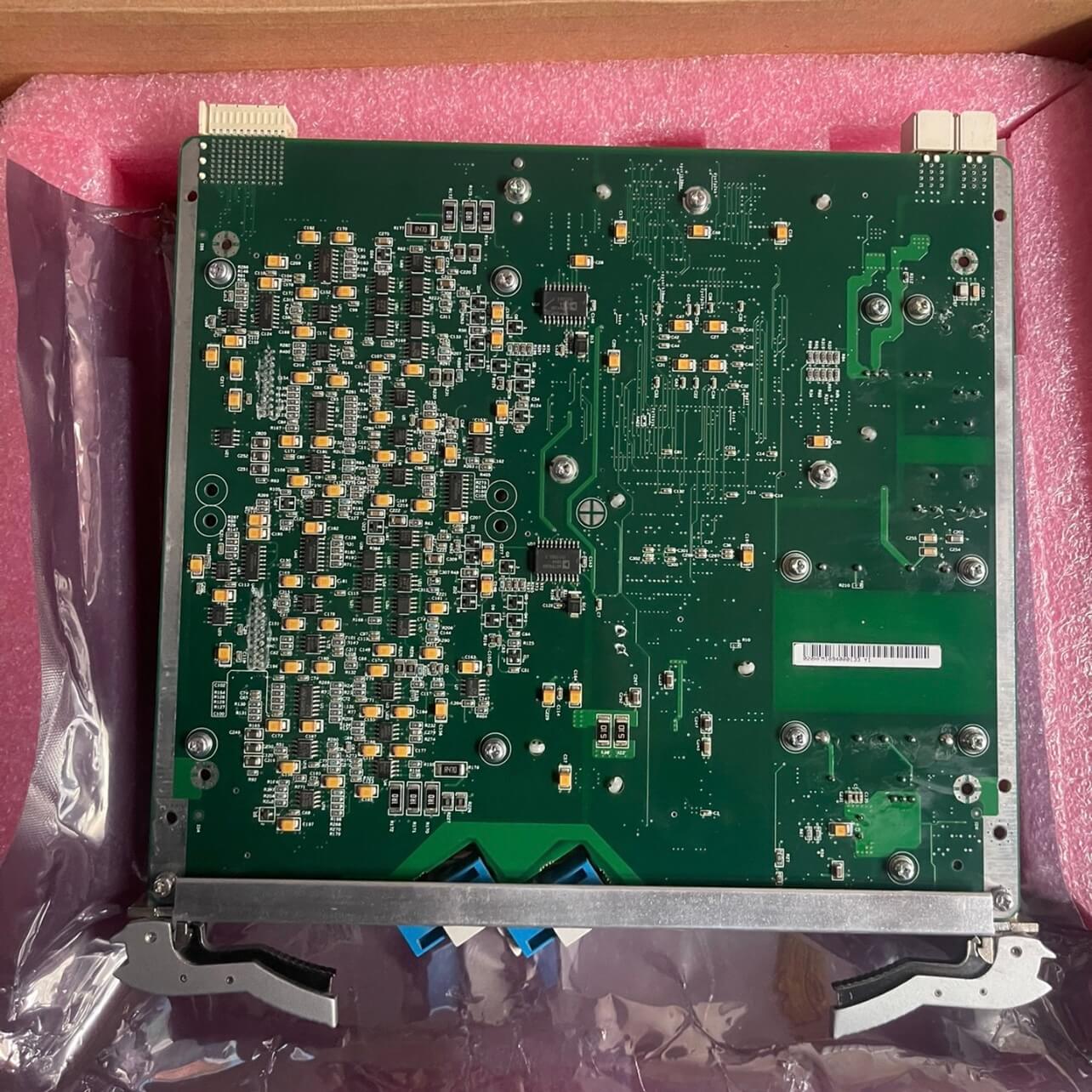

Huawei OptiX OSN 3500 Optical Amplifier Boards BPA SSN2BPA01 03030GQM Overview

BPA (optical booster and pre-amplifier board).

The BPA is available in the following functional versions: N1 and N2.

The BPA is an optical booster and pre-amplifier board. The BPA provides a booster amplifier (BA) and a pre-emplifier (PA), which are respectively used at the transmit end and receive end of the OptiX OSN equipment.

The BPA consists of the optical part, driving and detecting part, and data processing and communication part.

Functions and features of the SSN2BPA01

Function and Feature	BPA
Basic functions	Increases the launched optical power of the line board to 13-15 dBm or 15-17 dBm. As a result, when the G.652 optical fiber with a loss of 0.275 dB/km is used, the transmission distance can be 120 km, 130 km, or above.
Pre-amplification function	Provides the PA module to pre-amplify the received optical signals. Increases the power of the small-volume optical signals by 22-25 dB (N1BPA) or 22-33 dB (N2BPA).
Supporting the EDFA	Supports the automatic control of the laser temperature and optical power of the EDFA module. Supports the automatic monitoring of the input and output optical power of the EDFA module and query of the optical power of the EDFA module. Supports the protection function of the EDFA module. When no optical signals are received, the laser is automatically turned off. When optical signals are received, the laser is automatically turned on.
Performance events and alarms monitoring	Supports the reporting of the performance parameters of the laser. Reports various alarms and performance events, which facilitates the management and maintenance of the equipment.
Software upgrade	Supports the software upgrade and expansion without interrupting services.
Maintenance feature	Hot board swapping.
