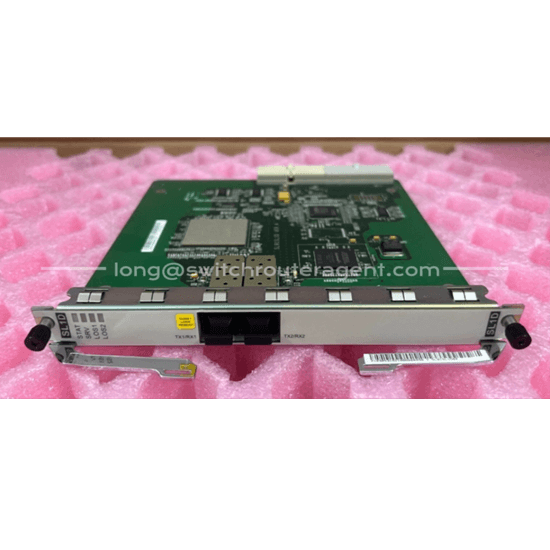

SL91SL1D02,3053102,SL1D,Huawei OTN Boards SL1D Service Interface Board

Huawei OTN Service Board SL91SL1D02 Overview

The SL1D/SL1DA is a 2xSTM-1 optical interface board. It can also provide STM-1 electrical ports through SFP electrical modules. In addition to all functions of the SL1D board, the SL1DA board also supports K byte pass-through. The functional version of the SL1D/SL1DA board is SL91.

The SL1D/SL1DA board can be used by the OptiX RTN 950 to aggregate TDM services from a microwave network for transmission to an SDH network or by the OptiX RTN 950 to work with the SDH equipment for building an SDH network.

The SL1D/SL1DA board receives and transmits two channels of STM-1 optical or electrical signals.

On the front panel of the SL1D/SL1DA board, there are indicators, STM-1 ports, and labels.

The SL1D/SL1DA board provides two STM-1 ports.

Indicators visually communicate the operating status of the SL1D/SL1DA board.

The SL1D/SL1DA board can be inserted in any of slots 1 to 6. The logical slots for the board on the NMS are the same as the physical slots.

The type of the SFP module of the SL1D/SL1DA board can be identified by the board feature code in the bar code. A board feature code refers to the number next to the board name in a bar code.

Board Functions

Function		Description
Basic functions		Receives and transmits two channels of STM-1 optical or electrical signals.
Port specifications	Optical port	Supports Ie-1, S-1.1, L-1.1, and L-1.2 optical ports when SFP optical modules are used. Provides optical port specifications that comply with ITU-T G.957.
Port specifications	Electrical port	Uses SFP electrical modules. Provides electrical port specifications that comply with ITU-T G.703.
Protection	LMSP	Supported
Protection	SNCP	Supported
Clock	Clock source	Provides one channel of SDH line clock signals over each line port.
Clock	Clock protection	Protection based on clock source priorities Protection based on the SSM protocol Protection based on the extended SSM protocol
DCN	Outband DCN	Provides one 3-byte, 9-byte, or 12-byte DCC over each SDH line port.
K byte pass-through		Supported (only by the SL1DA board)
O&M	Loopback	Supports outloops at optical/electrical ports. Supports inloops at optical/electrical ports. Supports outloops on VC-4 paths. Supports inloops on VC-4 paths.
	Warm reset and cold reset	Supported
	Turning on/off a laser	Supported
	Automatic laser shutdown (ALS)^a	Supported
	Query of board manufacturing information	Supported
	Query of board power consumption	Supported
	Detection and query of SFP module information	Supported
