OSN9800-U16,OSN 9800,U16,Huawei OptiX OSN 9800 U16 Switching Platforms OSN9800-U16

Huawei OptiX OSN 9800 U16 Switching Platforms OSN9800-U16 Overview

Intended for 100G and beyond 100G optical networks, the OSN 9800 U64/U32/U16 subrack is a next-generation large-capacity OTN product that integrates ASON, OTN, and packet functions. It is applicable to various networks, including super-backbone, backbone, and metro networks.

A U16 subrack can be used as a service subrack or a central switching subrack. Unless otherwise specified, the U16 subrack refers to a service subrack.

The OptiX OSN 9800 U16 subrack provides various management interfaces.

This topic describes the maximum cross-connect capacity of a service slot and an OptiX OSN 9800 U16 subrack.

Boards need to be installed in the designated slots in a subrack. The subrack runs on -48 V DC or -60 V DC and is divided into multiple areas in which boards are powered by designated PIU boards in different slots. The subrack can be installed in an ETSI cabinet or a 19-inch cabinet.

U16 can be used as a service subrack or a central cluster chassis. The function of a U16 subrack depends on the installed system control board. If the TNS1CTU board is installed, the U16 subrack functions as a common service subrack

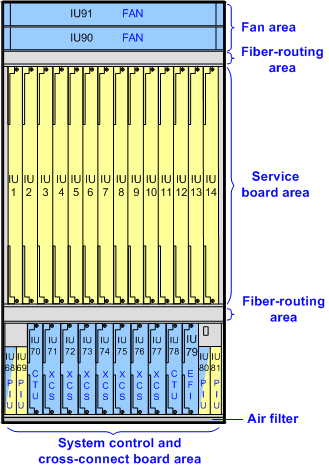

Schematic diagram of the areas and slots in the OptiX OSN 9800 U16 subrack (service subrack)
