The Cisco Nexus 3064 switches provide Layer 2 and 3 switching of up to 1.2 terabits per second (Tbps) and more than 950 million packets per second (Mbps) in a compact 1RU form factor.

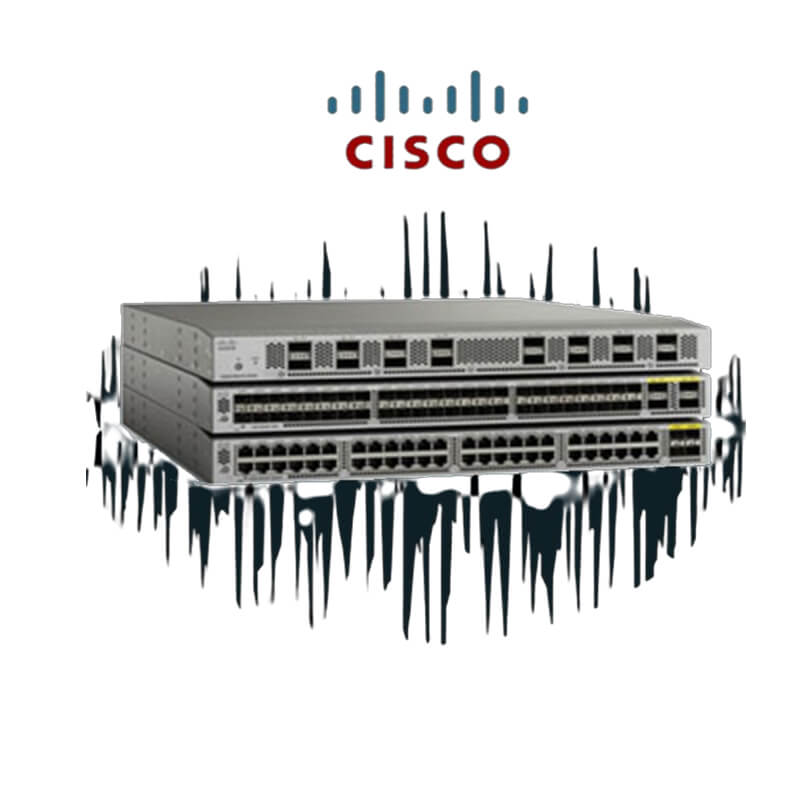

The Cisco Nexus 3000 Series Switches are a series of switches for data centers launched by Cisco. They have extremely low latency characteristics and can increase the processing speed of data transactions. This is very important for application scenarios that are sensitive to network latency (such as high-frequency trading) and can increase the revenue of related businesses.
All ports can provide line-speed 10 Gigabit Ethernet switching functions. For example, a compact 1RU (rack unit) switch can provide up to 1.2Tbps switching capacity and more than 950Mpps (million packets per second) layer 2/3 switching capabilities. Supporting the 40GbE standard, it has good scalability and can meet the needs of future network bandwidth growth.
N3K-C3064PQ-10GX Specification
| Physical | ● 1RU fixed form factor | |
| ● Cisco Nexus 3064-X: 64 10 Gigabit Ethernet ports (48 SFP+ and 4 QSFP+) | ||
| ◦ 48 SFP ports support 1 and 10 Gigabit Ethernet | ||
| ◦ 4 QSFP ports support 4 x 10 Gigabit Ethernet or 40 Gigabit Ethernet each | ||
| ● 2 redundant power supplies | ||
| ● 1fan tray with redundant fans | ||
| ● 1 I/O module with management, console, and USB flash memory ports | ||
| Performance | ● 1.28-Tbps switching capacity | |
| ● Forwarding rate of 950 mpps | ||
| ● Line-rate traffic throughput (both Layer 2 and 3) on all ports | ||
| ● Configurable maximum transmission units (MTUs) of up to 9216 bytes (jumbo frames) | ||
| Hardware tables and scalability | MAC addresses | 128,000 |
| Number of VLANS | 4096 | |
| Spanning-tree instances | ● Rapid Spanning Tree Protocol (RSTP): 512 | |
| ● Multiple Spanning Tree (MST) Protocol: 64 | ||
| ACL entries | ● 2000 ingress | |
| ● 1000 egress | ||
| Routing table | ● 16,000 prefixes and 16,000 host entries | |
| ● 8000 multicast routes | ||
| Number of EtherChannels | 64 (with vPC) | |
| Number of ports per EtherChannel | 32 | |
| Buffers | 9 MB shared | |
| Boot flash memory | 2 GB | |
| Power | Number of power supplies | 2 |
| ● Cisco Nexus 3064-X: Redundant for AC and DC power | ||
| Power supply types | ● AC (forward and reversed airflow) | |
| ● DC (forward and reversed airflow) | ||
| Typical operating power | ● Cisco Nexus 3064-X | |
| ◦ 143 watts (W; 64p with Twinax at 100% load; 2 power supply units [PSUs]) | ||
| ◦ 177W (64p with SR optics at 100% load; 2 PSUs) | ||
| Maximum power | ● Cisco Nexus 3064-X: 199W | |
| AC PSUs | ||
| ● Input voltage | ● 100 to 240 VAC | |
| ● Frequency | ● 50 to 60 Hz | |
| ● Efficiency | ● 89 to 91% at 220V | |
| DC PSUs | ||
| ● Input voltage | ● -40 to -72 VDC | |
| ● Maximum current | ● 33A | |
| ● Efficiency | ● 85 to 88% | |
| Typical heat dissipation | ● Cisco Nexus 3064-X | |
| ◦ 488 BTU/hr (64p with Twinax at 100% load; 2 PSUs) | ||
| ◦ 605 BTU/hr (64p with SR optics at 100% load; 2 PSUs) | ||
| Maximum heat dissipation | ● Cisco Nexus 3064-X: 683 BTU/hr | |
| Cooling | Forward and reversed airflow schemes: | |
| ● Forward airflow: Port-side exhaust (air enters through fan-tray and power supplies and exits through ports) | ||
| ● Reversed airflow: Port-side intake (air enters through ports and exits through fan-tray and power supplies) | ||
| Single fan tray with redundant fans | ||
| Hot swappable (must swap within 1 min) | ||
| Sound | Measured sound power (maximum) | |
| ● Fan speed: 40% duty cycle | ● 59.7 dBA | |
| ● Fan speed: 60% duty cycle | ● 66.4 dBA | |
| ● Fan speed: 100% duty cycle | ● 71.0 dBA | |
| Environment | Dimensions (height x width x depth) | ● Cisco Nexus 3064-X: 1.72 x 17.3 x 19.7 in. (4.4 x 43.9 x 50.5 cm) |
| Weight | ● Cisco Nexus 3064-X: 20.5 lb (9.3 kg) | |
| Operating temperature | 32 to 104°F (0 to 40°C) | |
| Storage temperature | -40 to 158°F (-40 to 70°C) | |
| Operating relative humidity | ● 10 to 85% noncondensing | |
| ● Up to 5 days at maximum (85%) humidity | ||
| ● Recommend ASHRAE data center environment | ||
| Storage relative humidity | 5 to 95% noncondensing | |
| Altitude | 0 to 10,000 ft (0 to 3000m) | |
