MA5608T,Huawei 19Inch SmartAX Capacity Devices Chassis MA5608T

Huawei 19Inch SmartAX Capacity Devices Chassis MA5608T Overview

The MA5608T is a series of large-/medium-/small-capacity devices that support integrated fiber-copper access and access-aggregation integration

The MA5608T has a fan tray at the left. The subrack is installed in the cabinet through the mounting brackets.

The MA5608T is mainly used in optical fiber access, and its applications in copper line access are sold in only specific markets. If you have copper line access requirements, contact the local Huawei sales engineers.

Include:

1*H90Z8BPMB03

1*H80MA580003

1*H90Z8BPMB

2*H903PILA

2*H907MPLB

2*OSXA01001

Physical Specifications of MA5608T

This topic provides the dimensions, weight, and power consumption of the MA5608T chassis.

Dimensions and Weight of MA5608T

Item	Specification
Dimensions (W x D x H, excluding mounting brackets)	442mm×244.5mm×88.1mm
Dimensions (W x D x H, including mounting brackets of IEC standard)	482.6mm×244.5mm×88.1mm
Dimensions (W x D x H, including mounting brackets of ETSI standard) NOTE: ETSI standard dimension is to add the ETSI mounting bracket on the IEC mounting bracket.	535mm×244.5mm×88.1mm
Weight (empty chassis)	3.55kg

Power specifications of the MA5608T

Item	Specification
Power supply mode	DC (dual power for backup) or AC power + battery
Rated voltage	DC power supply: -48 V / -60 V AC power supply: 110 V / 220 V
Working voltage range	DC power supply: -38.4 V to -72 V AC power supply: 100 V to 240 V
Maximum input current	DC power supply: 10 A AC power supply: 6 A

Configuration

This topic provides the configuration of the boards in the MA5608T chassis, and lists the type of the boards.

H801MABR is the backplane supported by the MA5608T. When the MA5608T is configured in a cabinet, the lower cable manager must be configured.

Configuration of boards in the MA5608T chassis (with H801MPWC or H801MPWD power board)

Configuration of boards in the MA5608T chassis (with H801MPWE power board)

The ESD jack of the MA5608T chassis is on the middle of the fan tray, which is used to connect the ESD wrist strap to prevent device damage caused by electrostatic discharge.

The position of the MA5608T chassis ESD jack

This topic describes the ventilation of the MA5608T chassis.

The MA5608T chassis has a fan tray at the left to blow air for heat dissipation.

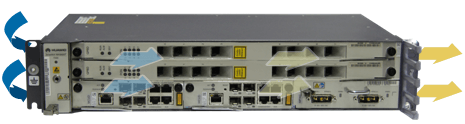

The airflow for the MA5608T chassis is as follows: The cool air flows to the chassis through the left side, and then the fans blow the air to the right side of the chassis through the boards. Finally, the air exits through the right side of the chassis
