Huawei MA5800 Series 16 Port GPON Interface Board H902GPHF 03025KEY

Huawei SmartAX MA5800 series OLT products include the MA5800-X17, MA5800-X15, MA5800-X7, and MA5800-X2.

It supports GPON, XG-PON, XGS-PON, XG-PON&GPON combo, XGS-PON&GPON combo, Flex-PONGE, 10GE, and other interfaces.

The MA5800 is the industry's first smart aggregation OLT with a distributed architecture. It is positioned as the next-generation OLT for NG-PON. The product is designed to help carriers build networks with larger bandwidths, higher speeds, and smarter connectivity to deliver better service experience.

• Providing GPON, 10G PON (including XG-PON and XGS-PON), P2P 10GE/GE access, the MA5800 supports deployment on FTTH, FTTD, FTTB, FTTC networks. This makes it applicable to home access, enterprise access, mobile backhaul, and Wi-Fi hotspot backhaul scenarios to aggregate all services on one fiber network.
• The MA5800 functions as a large-capacity aggregation device on the network to aggregate the traffic from ONTs, MDUs, and campus switches, thereby simplifying the network architecture and reducing the OPEX.

Huawei SmartAX MA5800 series OLT Platforms's Board Category as below:

The following types of boards are available for the system.

Control Board

Upstream Interface Board

Universal Interface Board (GPIO)

Power Board

GPON Interface Board

XG-PON Interface Board

XGS-PON Interface Board

PON Combo Interface Board

Flex-PON Interface Board

TDM Service Processing Board

GE/FE Optical Interface Board

10GE/GE Optical Interface Board

Video Service Processing Board

IP Backhaul Service Board

GPON Interface Board Overview

GPON interface boards work with the optical network unit (ONU) to provide GPON access services.

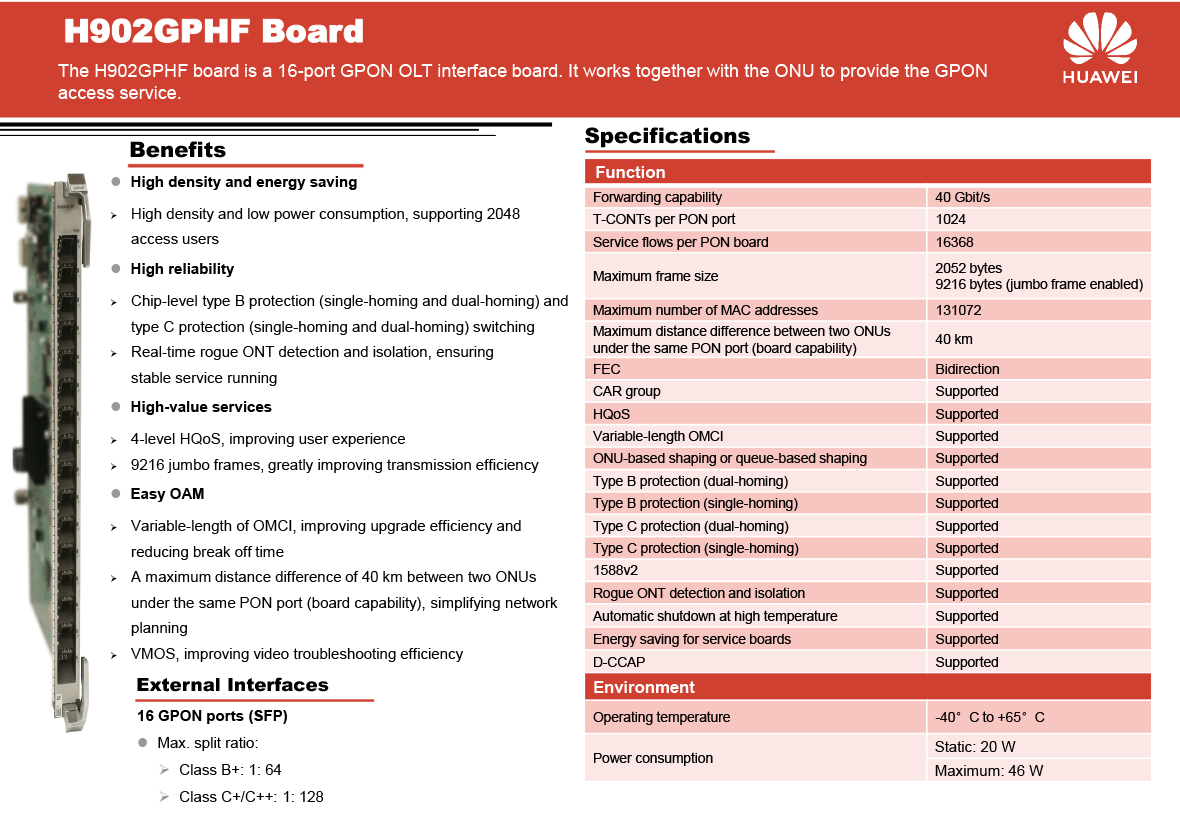

The H902GPHF board is a 16-port GPON OLT interface board. It works together with the ONU to provide the GPON access service

H902GPHF:16-port GPON OLT Interface Board
