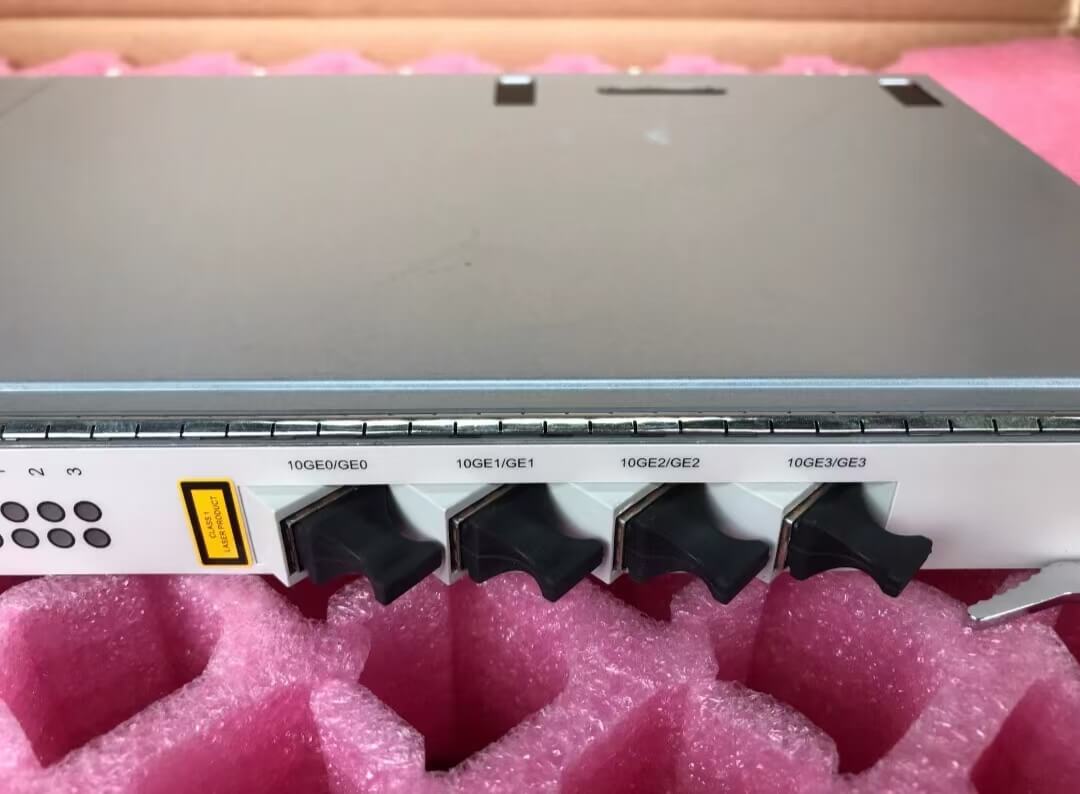

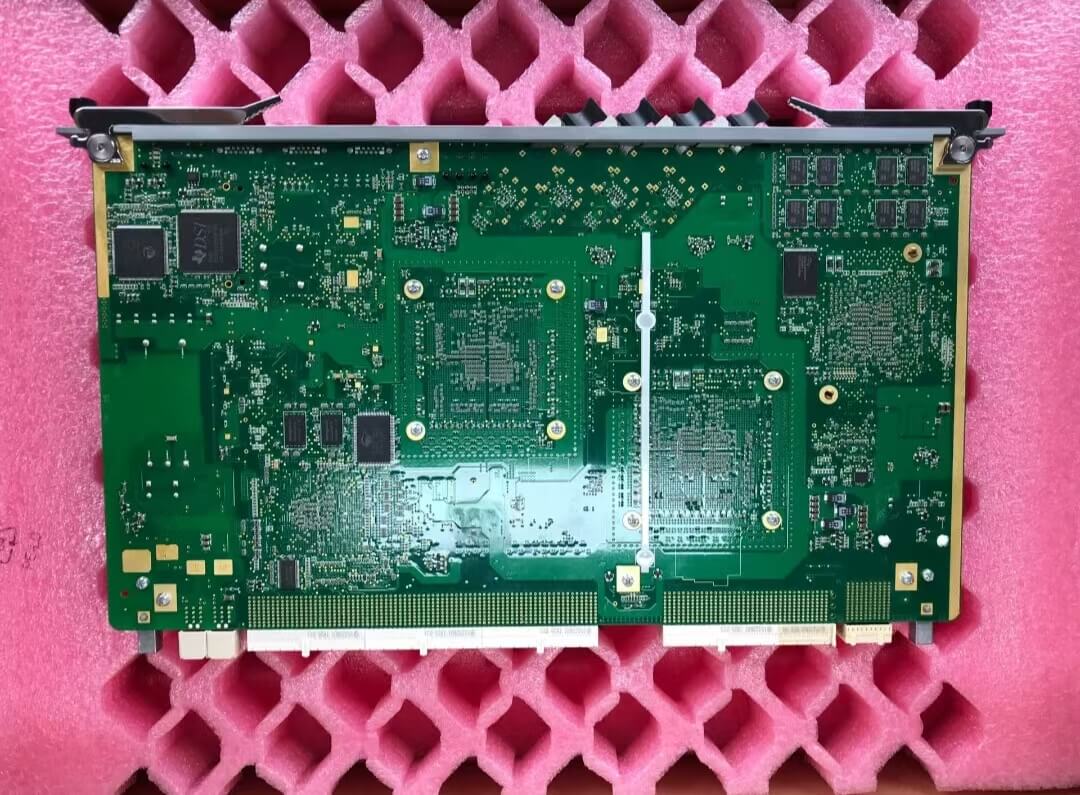

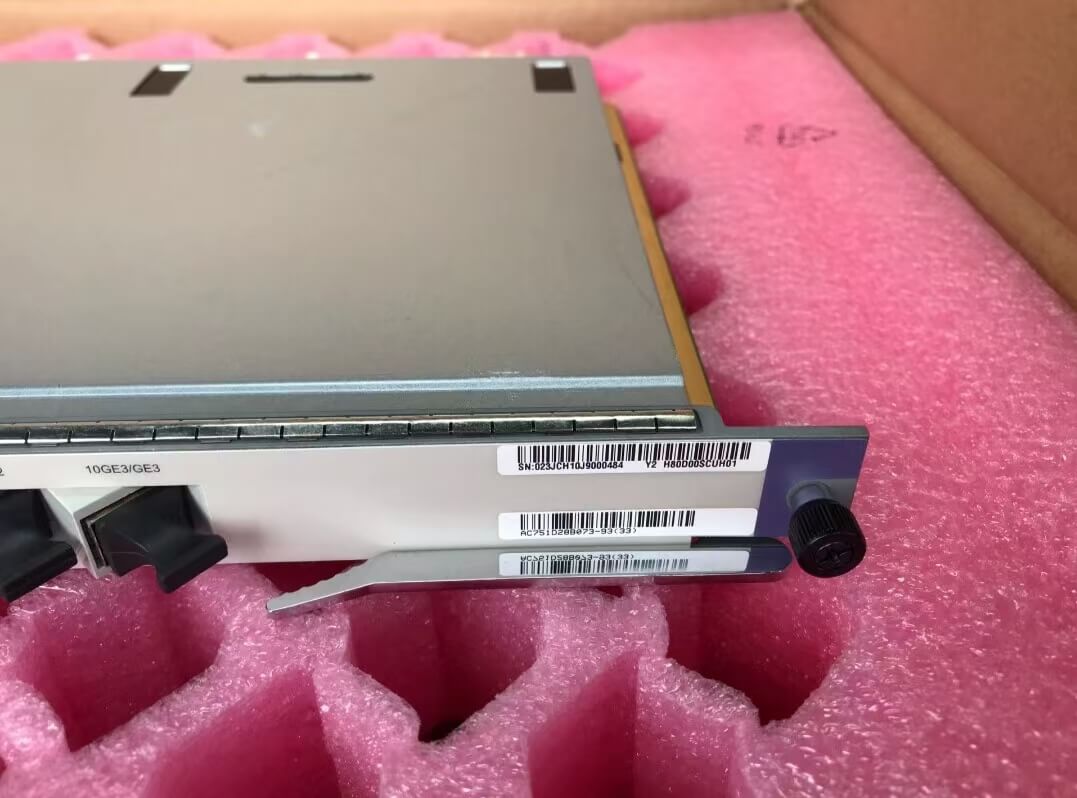

H801SCUH,Huawei OLT MA5600T Series SCU Control Board

Huawei OLT MA5600T Series SCU Control Board H801SCUH Overview

The H801SCUH board is a super control unit board. It is the core of the system control and service switching and aggregation.

The H801SCUH board can also function as the management and control core of the integrated network management system (NMS). It communicates with service boards about the key management and control information through the master/slave serial port and inband 10GE/20GE channel.

In this manner, the H801SCUH board configures, manages, and controls the device, and also implements the simple route protocol functions.

Datasheet of All SCU boards support the functions as below:

Board	Access Service	Daughter Board	Load sharing	Ethernet synchronization	Temperature querying and high temperature alarming	Built-in 2GB CF card	Centric Management for GE Remote Extended Subracks
H801SCUB/H802SCUB	Copper	H801FLBA H801CKMC H801CKMD	No	No	Yes	No	No
H801SCUF	Optical and copper	H801FLBA H801CKMC H801CKMD	No	No	Yes	No	No
H801SCUL	Optical	H801CKMC H801CKMD	No	No	Yes	No	No
H801SCUN	Optical and copper	H801FLBA H801CKMC H801CKMD H801M2XA	Yes (supported in V800R011C00 and later versions)	No	Yes	No	Yes
H802SCUN	Optical and copper	H801FLBA H801CKMC H801CKMD H801M2XA (version B)	Yes (supported in V800R011C00 and later versions)	No	Yes	No	Yes
H801SCUK	Optical and copper	H801FLBA H801CKMC H801CKMD H801M2XA (version B)	Yes (supported in V800R011C00 and later versions)	No	Yes	No	Yes
H801SCUH	Optical and copper	No	Yes	Yes	Yes	Yes	No
H801SCUV	Optical	No	Yes	Yes	Yes	Yes	No

Hunan Moka Information Technology Co., Ltd.

A professional import and export trade company specializing in the agency sales and services of the full range of Huawei telecom equipment,Huawei parts,Cisco products. Our product range includes Huawei Microwave,Huawe DWDM,Huawei SDH,Huawei OSN Series,Huawei parts, Cisco switches, Cisco routers, Cisco firewalls, Cisco wireless APs, Cisco conference terminals, Cisco optical modules, Cisco fiber optic jumpers, Cisco industrial switches, and Cisco software licenses. As an authorized distributor of Cisco in China, we directly purchase hardware and software from Cisco China in the name of projects. As a result, you can obtain the best discounts from Cisco China, typically ranging from 60% to over 90%. Due to Cisco's global sales policy, if you order Cisco licenses, with your consent and permission, we will assist you in installing and activating Cisco licenses within China. Alternatively, you can activate them in your own country, and we will transfer the licenses to you. All you need is a Cisco Smart Account. When the Cisco licenses expire, you can choose to renew them yourself or contact us.

As an authorized distributor of Cisco in China, we directly purchase hardware and software from Cisco China in the name of projects.

Huawei OLT MA5600T Series SCU Control Board H801SCUH
