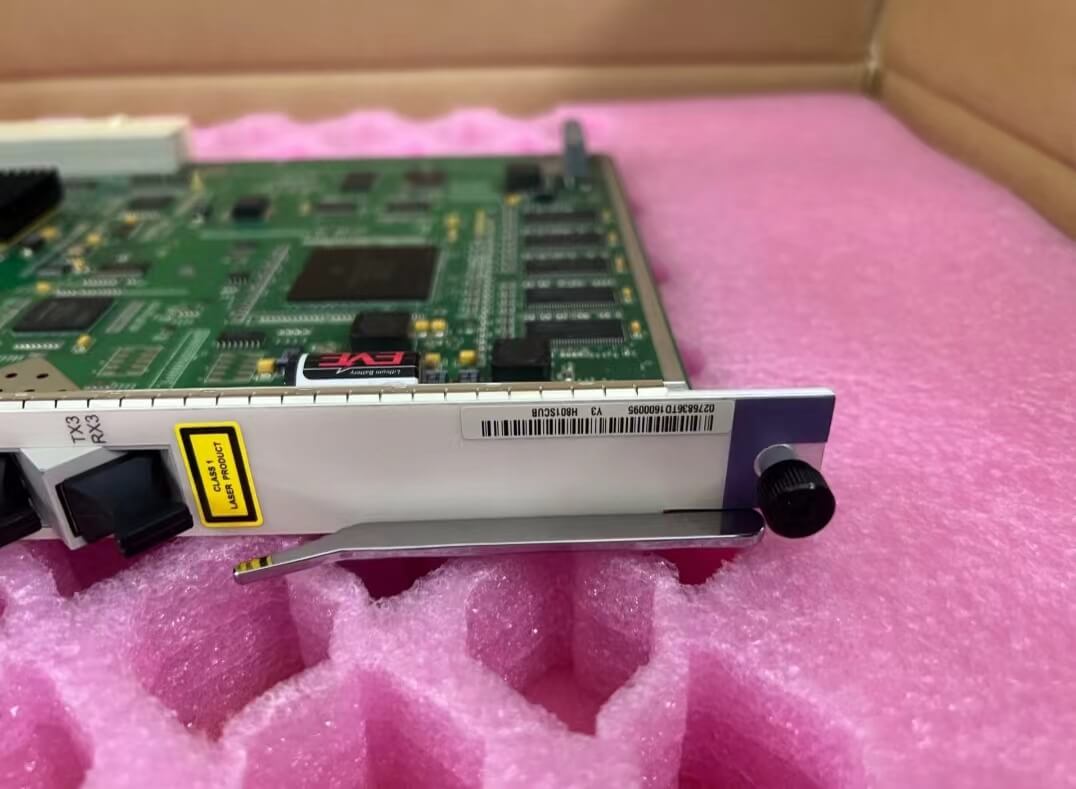

H801SCUB,Huawei MA5600T&MA5603T&MA5608T SCU Control Board

Huawei MA5600T&MA5603T&MA5608T SCU Control Board H801SCUB Overview

The H801SCUB board is a super control unit board. It is the core of the system control and service switching and aggregation. It can also function as the management and control core of the network management system (NMS).

The H801SCUB board communicates with service boards about the key management and control information through the master/slave serial port and inband GE channel.

In this way, the H801SCUB configures, manages, and controls the device.

The H801SCUB also implements the simple route protocol function.

Datasheet of All SCU boards support the functions as below:

Board	Access Service	Daughter Board	Load sharing	Ethernet synchronization	Temperature querying and high temperature alarming	Built-in 2GB CF card	Centric Management for GE Remote Extended Subracks
H801SCUB/H802SCUB	Copper	H801FLBA H801CKMC H801CKMD	No	No	Yes	No	No
H801SCUF	Optical and copper	H801FLBA H801CKMC H801CKMD	No	No	Yes	No	No
H801SCUL	Optical	H801CKMC H801CKMD	No	No	Yes	No	No
H801SCUN	Optical and copper	H801FLBA H801CKMC H801CKMD H801M2XA	Yes (supported in V800R011C00 and later versions)	No	Yes	No	Yes
H802SCUN	Optical and copper	H801FLBA H801CKMC H801CKMD H801M2XA (version B)	Yes (supported in V800R011C00 and later versions)	No	Yes	No	Yes
H801SCUK	Optical and copper	H801FLBA H801CKMC H801CKMD H801M2XA (version B)	Yes (supported in V800R011C00 and later versions)	No	Yes	No	Yes
H801SCUH	Optical and copper	No	Yes	Yes	Yes	Yes	No
H801SCUV	Optical	No	Yes	Yes	Yes	Yes	No
