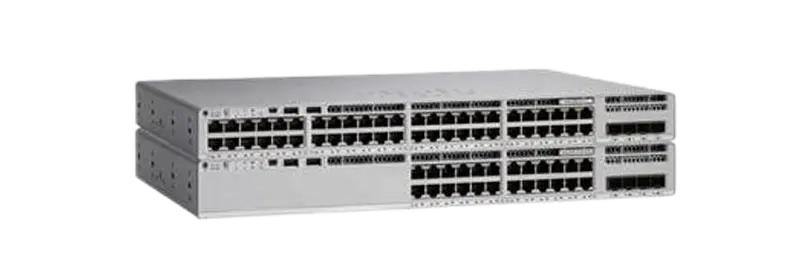

C9200-48P-A,Cisco Catalyst C9200 Series,3 Year License,48 Port PoE Switch

Cisco Switches Catalyst C9200-48P-A

C9200-48P-A is the Catalyst 9200 48-port PoE+ Switch, with Network Advantage software. Featuring robust security capabilities, the Catalyst 9200 Series Switches provide integrity assurance for hardware, software, and all data traversing through the switches. Coupled with exceptional resilience, these switches guarantee seamless operational continuity for your esteemed enterprise. Combining these features with Cisco IOS XE's open APIs and the programmability of UADP ASIC technology ensures that the Catalyst 9200 Series Switches not only meet your current needs but also safeguard your investments to future technological innovations.

Cisco Catalyst C9200-48P-A Specification

Model	C9200-48P-A
Description	Catalyst 9200 48-port PoE+, Network Advantage
Downlinks total 10/100/1000 or PoE+ copper ports	48 ports full PoE+
Uplink configuration	Modular uplink options
Default primary AC power supply	PWR-C6-1KWAC
Fans	FRU redundant
Software	Network Advantage
Stacking bandwidth	160 Gbps
DRAM	4 GB
Flash	4 GB
Switching capacity	176 Gbps
Forwarding rate	261.9 Mpps
Chassis Dimensions	1.73 x 17.5 x 13.8 in 4.4 x 44.5 x 35.0 cm
Virtual Networks	4
IPv4 routing entries	4,000
IPv6 routing entries	2,000
Multicast routing scale	1,000
QoS scale entries	1,000
ACL scale entries	1,000

The Smarter Cloud Solution for Business Networking

Equipped with full-power PoE+ capabilities, redundant power and fans, up to 160 Gbps stacking bandwidth, modular uplink options, Layer 3 support, and cold patching capabilities, the outstanding resilience and advanced architecture of the Catalyst 9200 Series Switches are unparalleled in the industry. Catalyst 9200 Series Switches stand as a cost-effective solution for branch office access.

Stable Global Supply Chain for Thriving Businesses.

$4,000,000 Inventory
500+ Reliable Vendors
Certified Partnerships
Collaborating with FedEx, UPS, DHL

Cisco C9200-48P-A

Highly Secure VPN

Catalyst 9200 series switches provide high-performance switching capabilities, support a variety of bandwidth requirements, and are suitable for enterprise networks of different sizes. This series of switches can be deployed in a variety of forms, including stacked, clustered and distributed deployments to meet different network topologies and needs. Catalyst 9200 switches integrate advanced security features, including embedded threat defense, authentication and access control. It also supports Cisco’s Trustworthy Solutions for comprehensive security protection.

High-performance IP routing

The Cisco Express Forwarding hardware routing architecture delivers extremely high-performance IP routing in Cisco Catalyst 9200 Series switches

Highlights of C9200-48P-A

● Full Power over Ethernet Plus (PoE+) capability for up to 48 ports for C9200. Power over Ethernet Plus (PoE+) capability for up to 12 ports, IEEE 802.3bt class 6 and Cisco UPOE capability for up to 8 ports for C9200CX.

● Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks for C9200 models. C9200CX models are fanless and are powered by internal fixed power supply or optional power adapters, when not powered by upstream IEEE 802.3bt class 6 60W PSE.

● Flexible power source options from line voltage AC, low voltage DC to High Voltage DC (HVDC) in C9200CX models provide the choices for customers to migrate to efficient DC micro grid powered by renewable energy sources for a sustainable future.

● Flexible downlink options with data, PoE+, UPOE, UPOE with mGig for Wi-Fi 6/6E.

● Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps.

● UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure.

● Enhanced security with AES-128 MACsec encryption on C9200 and AES-256 MACsec encryption for C9200CX models, policy-based segmentation, and trustworthy solutions for the whole Catalyst 9200 Series.

● Cisco Software-Defined Access (SD-Access).

Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity Services Engine (ISE).

Network assurance and improved resolution time through Cisco Catalyst Center.

● Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network.

● Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability and streaming telemetry.

● ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries.

● Cloud monitoring for Catalyst on Meraki dashboard.

Hunan Moka Information Technology Co., Ltd.

A professional import and export trade company specializing in the agency sales and services of the full range of Cisco products. Our product range includes Cisco switches, Cisco routers, Cisco firewalls, Cisco wireless APs, Cisco conference terminals, Cisco optical modules, Cisco fiber optic jumpers, Cisco industrial switches, and Cisco software licenses. As an authorized distributor of Cisco in China, we directly purchase hardware and software from Cisco China in the name of projects. As a result, you can obtain the best discounts from Cisco China, typically ranging from 60% to over 90%. Due to Cisco's global sales policy, if you order Cisco licenses, with your consent and permission, we will assist you in installing and activating Cisco licenses within China. Alternatively, you can activate them in your own country, and we will transfer the licenses to you. All you need is a Cisco Smart Account. When the Cisco licenses expire, you can choose to renew them yourself or contact us.

As an authorized distributor of Cisco in China, we directly purchase hardware and software from Cisco China in the name of projects.

Frequently Asked Questions (FAQ)

What feature sets does Cisco Catalyst C9200-48P-A switches support?

Cisco Catalyst C9200-48P-A switches support the packaging of features into Cisco Catalyst Advantage and Essentials software subscription options. The details of the features in each software subscription are listed in the feature matrix. Catalyst 9600 Series switches only support Cisco Catalyst Advantage licenses.

What programmability capabilities are available on the Catalyst C9200-48P-A switches?

Cisco Catalyst C9200-48P-A switches opens a completely new paradigm in network configuration, operation, and monitoring through network automation. The Cisco automation solution is open, standards based, and extensible across the entire network lifecycle of a network device.

● Device provisioning: Through Plug-and-Play (PnP), Zero-Touch Provisioning (ZTP), and Preboot Execution (PXE)

● Configuration: Model-driven operation through open Application Programming Interfaces (APIs) over NETCONF/RESTconf, Python Scripting

● Customization and monitoring: Streaming telemetry

● Upgrade and manageability: In-Service Software Upgrade (ISSU), patch ability, and config/replace

● Docker and third-party application hosting

What management capabilities are available for the Cisco Catalyst C9200-48P-A switches?

You can manage these switches using the Cisco IOS XE software Command-Line Interface (CLI), using Cisco Prime Infrastructure 3.1.7 DP13, Cisco Catalyst Center, onboard Cisco IOS XE Software Web User Interface (WebUI), Simple Network Management Protocol (SNMP), or NETCONF/RESTconf/YANG. Catalyst 9000 switches have been designed to work with Cisco Catalyst Center and SD-Access, using the Cisco Catalyst Center Appliance or virtual machine.

Is there an onboard web GUI on Cisco Catalyst C9200-48P-A family switches?

Yes. An onboard web GUI – WebUI – is available.

What is the purpose of the blue beacon LED on Cisco Catalyst C9200-48P-A switches?

The blue beacon LED is common across the Cisco Catalyst 9000 switching portfolio to simplify the operations. It makes chassis identification easier when several such switches are mounted on racks. A remote administrator can enable the LED to blink to help the local operator quickly locate the chassis. The local operator presses the mode button to acknowledge.

What is the maximum number of VRF instances that I can configure on the Cisco Catalyst C9200-48P-A platform?

The maximum number of VRFs that you can configure on the Cisco Catalyst 9300, 9400 and 9500 (C9500-16X/40X, C9500-12Q/24Q) Series switches is 256. For Catalyst 9200 Series switches the maximum is 4 VRFs on the modular models and 1 VRF on fixed models. For Cisco Catalyst 9400 (with C9400X-SUP-2/2X), 9500 (C9500-24Y4C/48Y4C, C9500-32QC/32C) and 9600 Series switches the maximum is 1K VRF’s at FCS.

What wireless support is provided with Cisco Catalyst C9200-48P-A switches?

The Cisco Catalyst 9000 family of switches is instrumental in supporting the following wireless capabilities in the SD-Access architecture:

● Connect access points and integrate them into the SD-Access fabric. The switch integrates with the fabric control plane (LISP), thereby providing reachability for the access points and clients in the fabric.

● Deliver macro (VRF) and micro (Security Group Tag (SGT) [SGT] group-based) segmentation to the access points to deliver end-to-end policies.

● Can terminate guest VXLAN traffic, so there is no need for a dedicated guest anchor controller.

The support for wireless capability uses the Cisco Catalyst 9800 Wireless Controllers for cloud-based or appliance- based control. You can also use the AireOS 8.5 Controller running on a Cisco 8540 Wireless Controller, Cisco 5520 Wireless Controller, or Cisco 3504 Wireless Controller appliance with the Cisco Catalyst platforms functioning as Fabric Edge and Fabric Border nodes.
