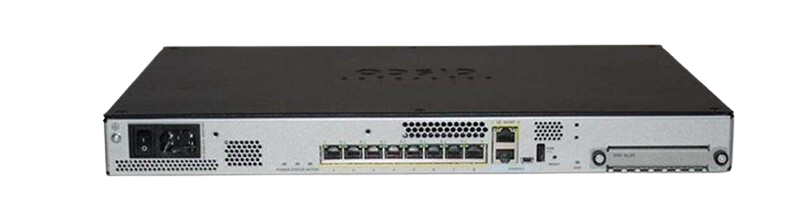

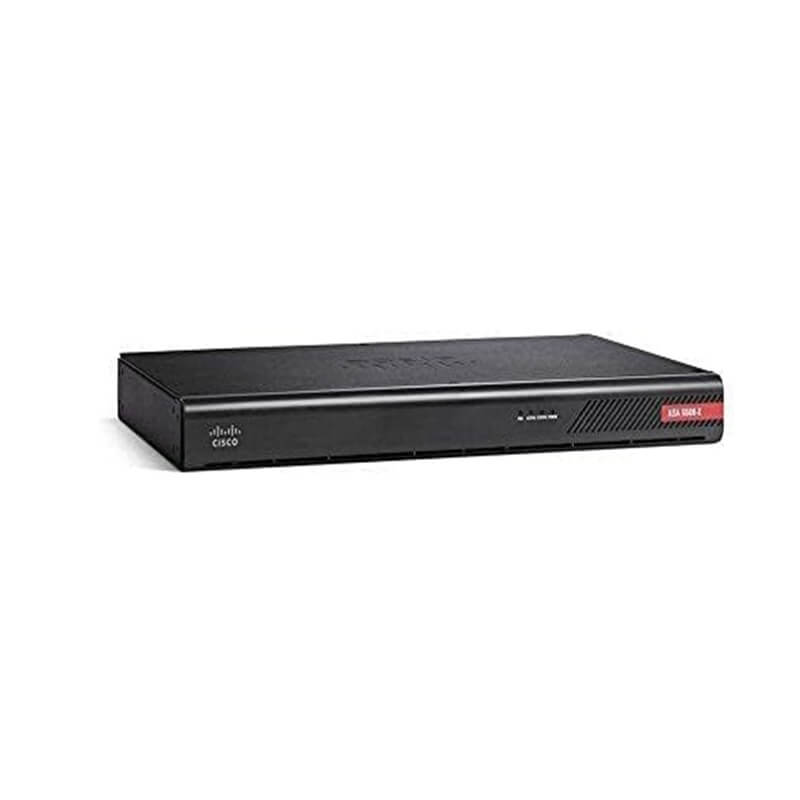

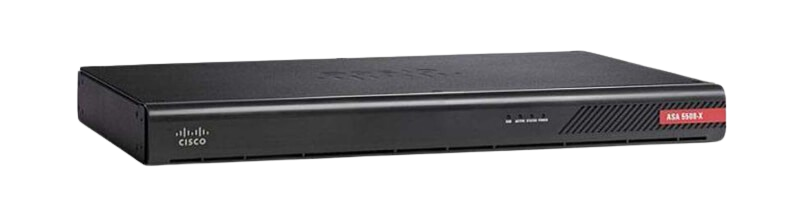

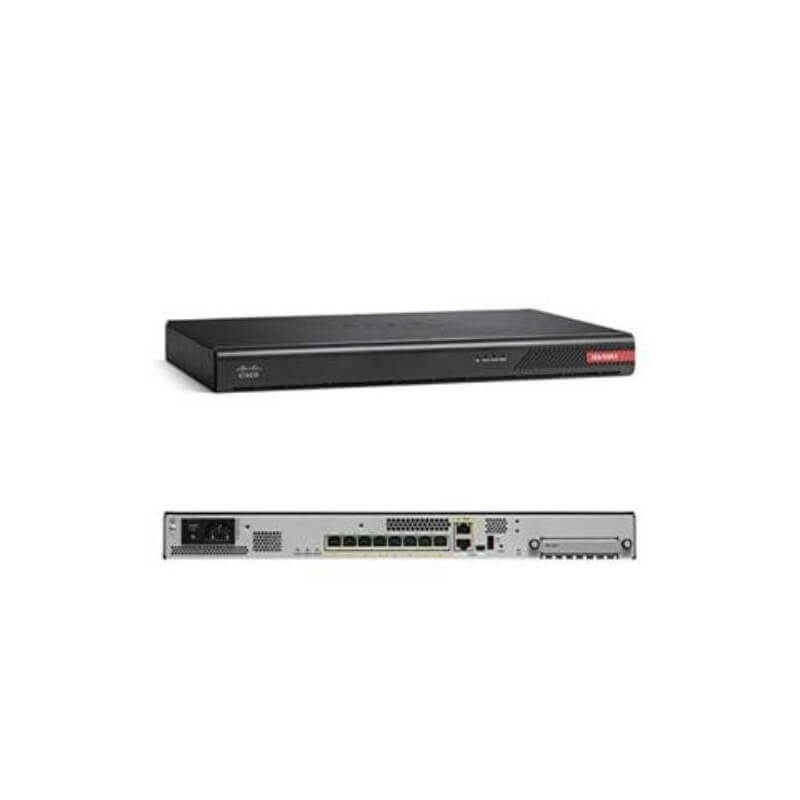

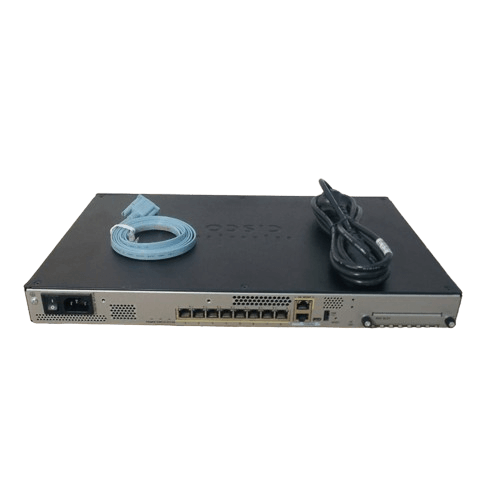

Cisco ASA5508-K9 Network Security/Firewall Appliance

Cisco ASA5508-K9 Network Security

Cisco ASA 5508-X FirePower services Firewall is the entry-level next-generation firewall system that serves as an ideal choice for small or mid-size enterprises and branch offices. It is meticulously designed to meet the diverse security and networking needs of these organizations.

This firewall system has 8 Gigabit Ethernet interfaces, offering high-speed and reliable network connectivity. Including an 80GB SSD provides ample storage for essential data and configuration files.

It supports up to 100 IPsec VPN peers, enabling secure remote access and communication for a significant number of users or branches. With the capacity to handle 50,000 concurrent connections simultaneously, it ensures smooth and efficient network operation even during peak usage periods. Moreover, its 1 Gbps throughput guarantees rapid data transmission without causing bottlenecks or delays in the network.

ASA5508-K9

Cisco ASA5508-K9 Network Security Specification

Type	Cisco ASA 5508-X w/ FirePOWER Services
Throughput: Application Control (AVC)	450 Mbps
Throughput: Application Control (AVC) and IPS	250 Mbps
Maximum concurrent sessions	100,000
Maximum New Connections per second	10,000
Supported applications	More than 3,000
URL categories	80+
Number of URLs categorized	More than 280 million
Centralized configuration, logging, monitoring, and reporting	Multi-device Cisco Security Manager (CSM) and Cisco Firepower Management Center
On-Device Management	ASDM (version 7.3 or higher required)
Feature	Cisco ASA 5508-X w/ FirePOWER Services
Stateful inspection throughput (maximum)	1 Gbps
Stateful inspection throughput (multiprotocol)	500 Mbps
Triple Data Encryption Standard/ Advanced Encryption Standard (3DES/AES) VPN throughput3	175 Mbps
Users/nodes	Unlimited
IPsec site-to-site VPN peers	100
Cisco AnyConnect Plus/Apex VPN maximum simultaneous connections5	100
Virtual interfaces (VLANs)	50
Security contexts5(included; maximum)	2; 5
High availability	Active/ Active and Active/ Standby
Integrated Wireless Access Point (See Cisco AP 702 datasheet for WiFi technical details)	N/A
Expansion slot	N/A
User-accessible Flash slot	No
USB 2.0 ports	USB port type ‘A’, High Speed 2.0
Integrated I/O	8 x 1GE
Expansion I/O	N/A
Expansion I/O
Dedicated management port	Yes (To be shared with FirePOWER Services), 10/100/1000
Serial ports	1 RJ-45 and Mini USB console
Solid-state drive	80 GB mSata
Solid-state drive
Memory	8 GB
System flash	8 GB
System bus	Multibus architecture
Temperature	32 to 104°F (0 to 40 °C)
Relative humidity	10 to 90 percent noncondensing
Altitude	Designed and tested for 0 to 10,000 ft (3048 m)
Acoustic noise	41.6 A-weighted decibels (dBA) type
Acoustic noise	67.2 dBA max
Temperature	-13 to 158ºF (-25 to 70ºC)
Relative humidity	10 to 90 percent noncondensing
Altitude	Designed and tested for 0 to 15,000 ft (4572 m)
AC range line voltage	External, 90 to 240 volts alternating current (VAC)
AC normal line voltage	91 to 240 VAC
AC current	0.25AC amps
AC frequency	50/60 Hz
Dual-power supplies	None
DC domestic line voltage	N/A
DC international line voltage	N/A
DC current	N/A
Steady state	12V @3.0A
Maximum peak	12V @ 5A
Maximum heat dissipation	123 Btu/hr
Form factor	1 rack unit (RU), 19-in. rack-mountable
Dimensions (H x W x D)	1.72 x 17.2 x 11.288 in.
Dimensions (H x W x D)	(4.369 x 43.688 x 28.672 cm)
Weight (with AC power supply)	8 lb (3 kg)

Cisco ASA5508-K9 Scene Deployment

For Mid-size enterprises with multiple departments and remote workers, the 100 IPsec VPN peer support would allow seamless connection for teams working from different locations. The 50,000 concurrent connections capability could handle the simultaneous access of a large number of employees and clients accessing the company's resources. The 1 Gbps throughput would ensure that large files or data-intensive applications are transferred quickly, improving productivity and efficiency.

ASA5508-K9

Cisco ASA5508-K9 Intelligent Management

In a branch office scenario, the 8 Gigabit Ethernet interfaces would enable connection to various local devices and networks, while the 80GB SSD would store critical security policies and logs. The high throughput and connection handling capabilities would ensure that the branch office's network remains stable and responsive, even when handling heavy traffic from both local and remote sources.

ASA5508-K9

Highly Secure VPN

With a powerful hardware design, the router supports and manages up to 100× LAN-to-LAN IPSec, 50× OpenVPN*, 50× L2TP, and 50× PPTP VPN connections. One-click auto IPSec VPN* greatly simplifies VPN configuration and facilitates network management and deployment while also securing and encrypting private site-to-site data communications traveling over the internet.

ASA5508-K9

Cisco ASA5508-K9 Feature Availability

The ASA5508-K9 device is designed with redundant and hot-swappable functions, improving the availability of the entire network. This is critical for the continuity of critical operations and services. The ASA5508-K9 supports a high degree of scalability to accommodate future enterprise growth and the introduction of new technologies. The ASA5508-K9 switch is a powerful, flexible, and secure device suitable for the network infrastructure of medium and large enterprises, providing high performance and advanced network management capabilities.

ASA5508-K9

Packing Information

The Cisco Catalyst ASA5508-K9 Switch module is sealed in the Cisco original box. We will also pack ASA5508-K9 with a second box before shipping.

Hunan Moka Information Technology Co., Ltd.

A professional import and export trade company specializing in the agency sales and services of the full range of Cisco products in the United States. Our product range includes Cisco switches, Cisco routers, Cisco firewalls, Cisco wireless APs, Cisco conference terminals, Cisco optical modules, Cisco fiber optic jumpers, Cisco industrial switches, and Cisco software licenses. As an authorized distributor of Cisco in China, we directly purchase hardware and software from Cisco China in the name of projects. As a result, you can obtain the best discounts from Cisco China, typically ranging from 60% to over 90%. Due to Cisco's global sales policy, if you order Cisco licenses, with your consent and permission, we will assist you in installing and activating Cisco licenses within China. Alternatively, you can activate them in your own country, and we will transfer the licenses to you. All you need is a Cisco Smart Account. When the Cisco licenses expire, you can choose to renew them yourself or contact us.

As an authorized distributor of Cisco in China, we directly purchase hardware and software from Cisco China in the name of projects.

Frequently Asked Questions (FAQ)

Can I put this firewall at the balcony?

You'd better keep the Temperature -13 to 158ºF (-25 to 70ºC), and Relative humidity 10 to 90 percent noncondensing.

How do I download software for the Cisco ASA5508-K9 Series security appliances?

The software can be downloaded from the Cisco Download Software page (registered customers only).

What is Cisco ® Adaptive Security Appliance (ASA) Software?

Cisco ASA Software is the core operating system that powers Cisco ASA firewall products. It offers stateful firewalling, VPN capabilities, and clustering capabilities; provides for the scalability of ASA hardware; and integrates with other security solutions like Cisco IPS, Cisco Cloud Web Security, Cisco Identity Services Engine (ISE), and Cisco TrustSec ® technology. In addition, it offers next-generation firewall capabilities through the ASA CX software module on ASA5500-X or through a Security Services Processor (SSP) in the ASA 5585-X appliances.

What happens if I enter the wrong license key?

License check happens at runtime. A wrong license key will be rejected and the existing license will remain in effect. A license key change does not affect the network traffic flowing through the ASA appliance. Configuration removal and the formatting of internal flash will not remove the license key.
