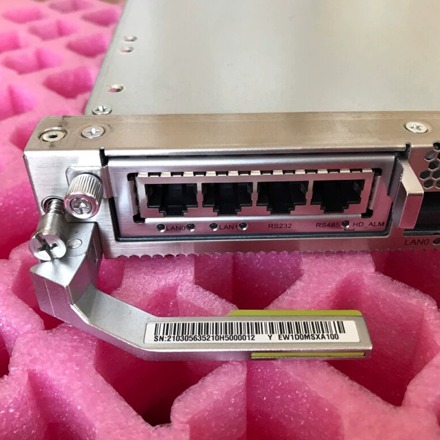

Huawei eSE620X FusionEngine Board EW1D0MSXA100

Function

Description

Operation and maintenance

The general processing card (GPC) on the MSXA1 implements subrack configuration and maintenance, monitors the system status, and performs performance measurement.

1. Supports one Intel^® Core^™ quad-core I7-3615QE processor with low power consumption.
2. Provides two double data rate 3 (DDR3) memory channels, each for installing one 8 GB unbuffered dual in-line memory module (UDIMM). The board offers a maximum memory capacity of 16 GB. The actual memory capacity is 16 GB.
3. Supports 1333 MHz or 1600 MHz UDIMMs.
4. Supports error checking and correction (ECC).

Switch and management

Network switching

The MSXA1 implements intra-subrack switching and inter-subrack expansion on the Base plane and eFabric plane.

1. The panel provides two external 1GE Base ports and two 40GE eFabric ports. Each 40GE eFabric port can be split into four 10GE ports.
2. The Base plane provides one 1GE channel for each service slot.
3. The eFabric plane provides 120 Gbit/s bandwidth for each service slot.
4. There are Base and eFabric plane interconnect channels between MSXA1s.

Device management

The SMM provides the following device management functions:

1. Board management
   1. Detects the board temperature, voltage, and power, implements power control, manages board hot swap and reset, and monitors the operating and health status.
   2. Supports out-of-band and remote management.
   3. Supports hot swapping for the board.
2. Subrack management
   1. Performs power supply monitoring, fan management, and power distribution management.
   2. Communicates with the baseboard management controllers (BMCs) on service boards to manage and control the service boards.

Storage

Supports one 600 GB 2.5-inch SAS disk.
